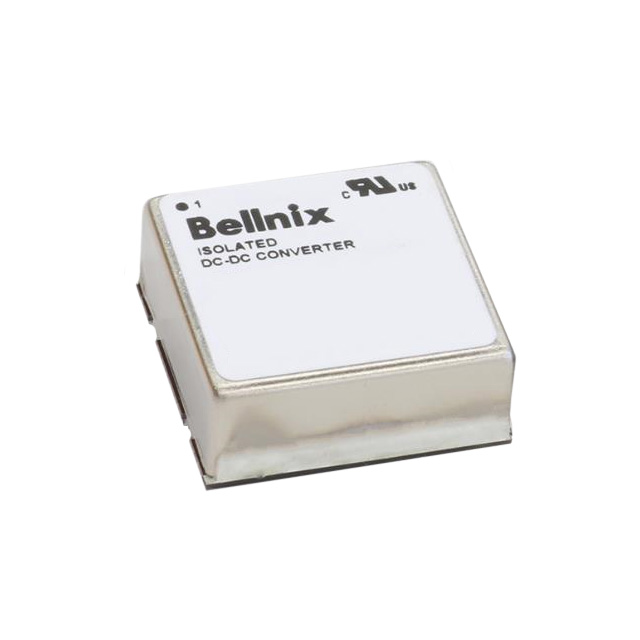

BTI24-03S400D

BTI24-03S400D is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Bellnix Co., Ltd.. Its product description is DC DC CONVERTER 3.3V 13W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BTI24-03S400D

• Description：DC DC CONVERTER 3.3V 13W
• Series：BTI (15W)
• Mfr：Bellnix Co., Ltd.
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：4A
• Power (Watts)：13 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：85%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 9.9mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：cURus
• Standard Number：-

DC DC Converters datasheet and documents for BTI24-03S400D
