Product Detailed Parameters
- Description：A versatile bi-directional USB 2
- Series：-
- Mfr：BYNET TESTING SYSTEMS
- Package：Retail Package
- Function：Multiplexer
- Frequency：-
- RF Type：General Purpose
- Secondary Attributes：4 Channels
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

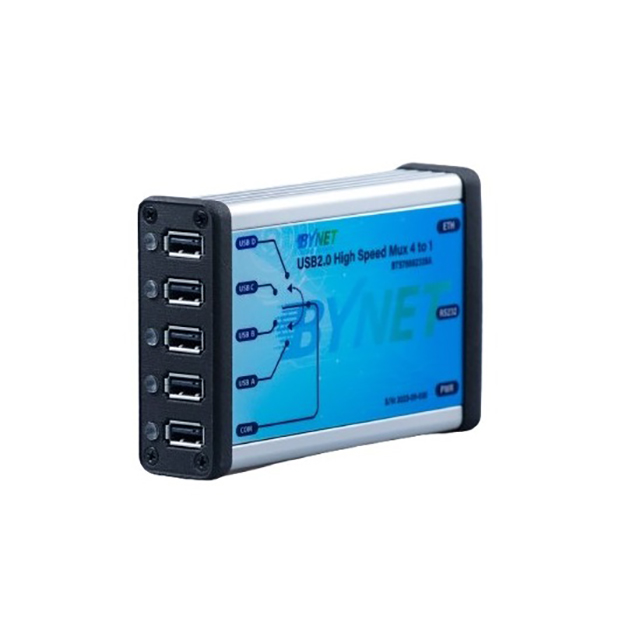

The BTS78882328A is a versatile bi-directional, low-power, high-speed USB 2.0 multiplexer designed by Bynet Testing Systems. It functions as a 4-to-1 switch, facilitating the connection of four high-speed sources to a single destination or vice versa. This component is engineered for automated test equipment (ATE) environments where signal integrity and switching speed are critical. The device supports USB 2.0 High Speed data rates, ensuring reliable transmission in complex testing setups.
Feature Summary
- Bi-directional signal routing capability
- High-speed USB 2.0 compatibility
- Low power consumption design
- Versatile 4:1 multiplexing architecture
Applications
- Automated Test Equipment (ATE) systems
- USB device testing fixtures
- Signal routing in validation platforms
- High-speed data acquisition setups
Procurement Notes
Verify part authenticity through authorized Bynet Testing Systems channels. Confirm specific revision levels and packaging details against official documentation. Ensure compatibility with existing ATE infrastructure before procurement. Request detailed datasheets for electrical specifications and pin configurations.
Selection Notes
Select this component when bi-directional USB 2.0 switching is required in low-power applications. Consider its 4-channel capacity for consolidating multiple test sources. Evaluate thermal performance and signal integrity requirements against the device's high-speed capabilities. Ensure the form factor fits within the designated test fixture constraints.
Part Context
Bynet Testing Systems specializes in full-turnkey automated testing solutions. The BTS78882328A serves as a core switching component within their custom test fixtures. It enables efficient management of multiple USB devices under test, supporting parallel testing scenarios and reducing cabling complexity in production environments.
Replacement Considerations
No public confirmed substitute part numbers are available for the BTS78882328A. Verify functional equivalence carefully if considering alternatives from other manufacturers. Ensure any replacement maintains USB 2.0 High Speed compliance and bi-directional switching characteristics.
