BU24033GW-E2

Overview

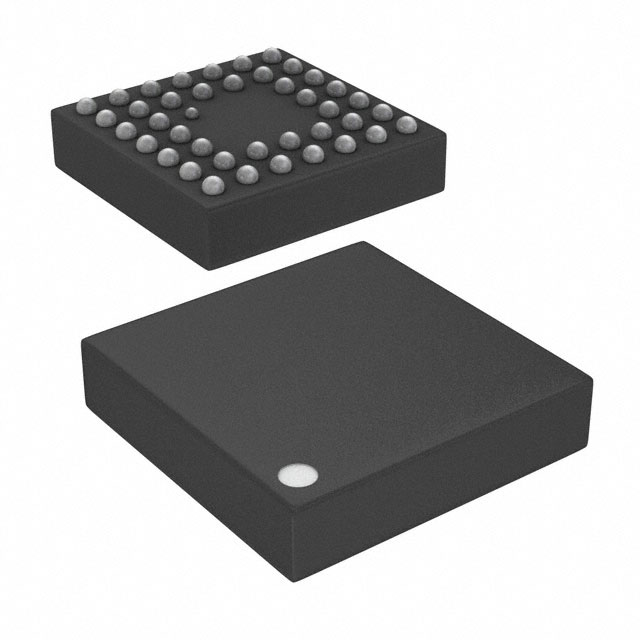

The BU24033GW-E2 is a motor driver IC from ROHM Semiconductor, designed for bipolar brushed DC and voice coil motors. It features a half-bridge configuration with twelve parallel outputs to enhance current capacity. The device operates within a supply voltage range of 2.7 V to 5.5 V and supports an operating temperature range from -20 °C to +85 °C. It utilizes a surface-mount package suitable for compact electronic designs.

Feature Summary

• Integrates a half-bridge driver topology specifically configured for driving bipolar brushed DC motors and voice coil actuators.
• Employs a parallel interface architecture that aggregates multiple output channels to increase total drive capability.
• Operates reliably across a wide industrial temperature spectrum without requiring external thermal management components.

Applications

• Precision positioning systems utilizing voice coil motors
• Compact actuator drives in consumer electronics
• Bipolar brushed DC motor control in portable devices

Procurement Notes

Verify the specific suffix E2 against the manufacturer's latest documentation to confirm compliance with current environmental standards and material declarations. Ensure the ordering quantity aligns with the manufacturer's minimum packing requirements. Cross-reference the datasheet revision date to guarantee compatibility with your design specifications before finalizing procurement.

Selection Notes

Select this component when designing circuits requiring high-current drive for bipolar loads within a low-voltage environment. The parallel output structure makes it suitable for applications demanding higher torque or force than standard single-channel drivers can provide. Consider the surface-mount package constraints during PCB layout to ensure adequate thermal dissipation and signal integrity.

Part Context

This part belongs to ROHM's portfolio of motor and motion controllers, which are categorized under Power Management ICs. These components are engineered to provide efficient control solutions for various electromechanical loads, ranging from small fans to precision actuators, integrating necessary protection features directly into the silicon die.

Replacement Considerations

Consult official substitution lists for direct pin-compatible alternatives if availability is constrained. Verify that any substitute maintains the same half-bridge topology and parallel output configuration to ensure functional equivalence in existing designs.

FAQ

What type of motor load is this driver optimized for?

It is optimized for bipolar brushed DC motors and voice coil motors using a half-bridge configuration.

How does the parallel interface affect performance?

The parallel interface combines multiple internal bridge channels to deliver higher aggregate output current compared to single-channel drivers.
