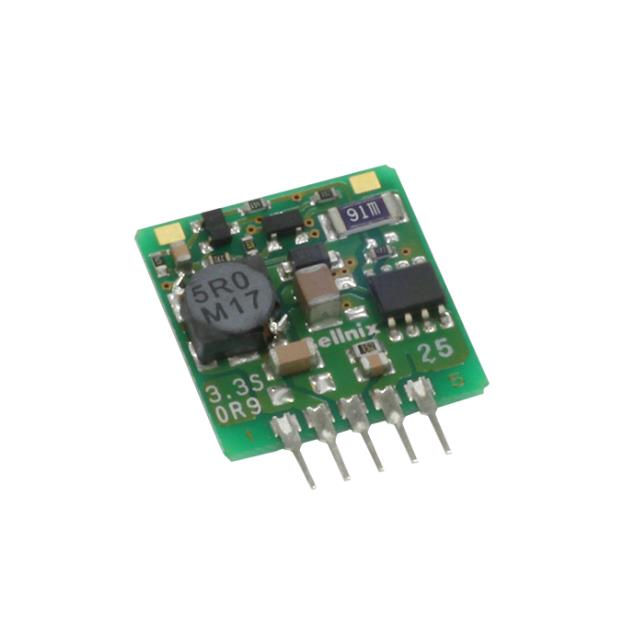

BUP-3.3S0R9

BUP-3.3S0R9 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Bellnix Co., Ltd.. Its product description is DC DC CONVERTER 3.3V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BUP-3.3S0R9

• Description：DC DC CONVERTER 3.3V 3W
• Series：BUP (3W)
• Mfr：Bellnix Co., Ltd.
• Package：Bulk
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：1.3V
• Voltage - Input (Max)：4.2V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：900mA
• Power (Watts)：3 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-20°C ~ 70°C (With Derating)
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：5-SIP Module
• Size / Dimension：0.80" L x 0.27" W x 0.94" H (20.2mm x 6.8mm x 24.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for BUP-3.3S0R9
