Product Detailed Parameters
- Description：PWR XFMR LAMINATED 4VA TH
- Series：-
- Mfr：Pulse Electronics
- Package：-
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：Parallel 12V, Series 24V
- Current - Output (Max)：Parallel 332mA, Series 166mA
- Primary Winding(s)：Dual
- Secondary Winding(s)：Dual
- Center Tap：No
- Power - Max：4VA
- Mounting Type：Through Hole
- Termination Style：PC Pin
- Size / Dimension：53.00mm L x 44.00mm W
- Height - Seated (Max)：19.00mm
- Voltage - Isolation：-
- Weight：0.133 lb (60.33 g)
Download product information
Overview

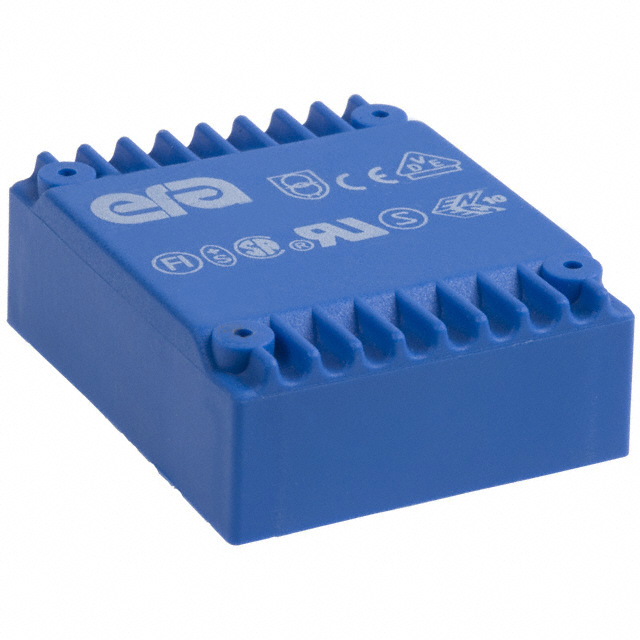

The BV030-6941.0 is a laminated core power transformer manufactured by Pulse Electronics, designed for through-hole mounting. It features a maximum power rating of 4VA and lacks a center tap configuration. The component is classified as obsolete in current distributor inventories.
Feature Summary
- Laminated core construction
- Through-hole mounting style
Applications
Procurement Notes
This component is listed as obsolete by major distributors such as DigiKey. Verification of availability requires checking secondary market suppliers or legacy stock holders. Confirm end-of-life status with the manufacturer before finalizing design-in decisions to ensure long-term supply chain stability.
Selection Notes
Due to its obsolete status, this part should be avoided for new designs. Engineers should consult the manufacturer's official documentation for recommended replacement models within the BV030 series that offer updated specifications and active production status to ensure compatibility and future support.
Part Context
The BV030-6941.0 belongs to the BV030 series of power transformers from Pulse Electronics. This series typically includes various laminated core transformers with different voltage ratings and power capacities, serving general-purpose isolation applications in electronic circuits.
Replacement Considerations
Consult Pulse Electronics official documentation for specific cross-reference part numbers. Verify electrical parameters match requirements when selecting an alternative.
