Product Detailed Parameters
- Description：PWR XFMR LAMINATED 6VA TH
- Series：-
- Mfr：Pulse Electronics
- Package：-
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：Parallel 9V, Series 18V
- Current - Output (Max)：Parallel 666mA, Series 333mA
- Primary Winding(s)：Dual
- Secondary Winding(s)：Dual
- Center Tap：No
- Power - Max：6VA
- Mounting Type：Through Hole
- Termination Style：PC Pin
- Size / Dimension：53.00mm L x 44.00mm W
- Height - Seated (Max)：22.00mm
- Voltage - Isolation：-
- Weight：0.133 lb (60.33 g)
Download product information
Overview

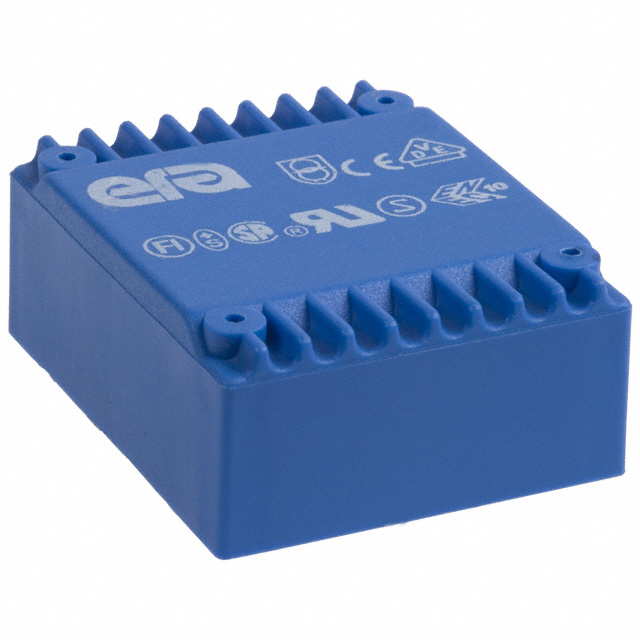

The BV030-7007.0 is a laminated core power transformer manufactured by Pulse Electronics, designed for through-hole PCB mounting. It features a primary voltage rating of 115V and 230V configured in parallel. The secondary side provides dual outputs: 9V at 666mA in parallel configuration and 18V at 333mA in series configuration. This component serves as a general-purpose power supply transformer with a 6VA rating.
Feature Summary
- Laminated core construction for efficient magnetic coupling
- Through-hole mounting style for robust PCB integration
- Dual secondary voltage options supporting parallel or series circuit topologies
Applications
- General purpose AC to DC power supply units
- Industrial control equipment power stages
- Consumer electronics requiring isolated low-voltage DC input
Procurement Notes
Verify the specific winding configuration required for your design, as the BV030 series offers multiple variants with different secondary voltages and current ratings. Confirm that the 6VA power rating meets the load requirements of your application. Ensure the through-hole footprint dimensions are compatible with your PCB layout before finalizing the component selection.
Selection Notes
Select this model when a standard 115V/230V primary input is needed with flexible secondary output options. The parallel secondary connection provides higher current capability, while the series connection yields higher voltage. Consider the physical size constraints of the through-hole package and ensure adequate clearance for the laminated core structure within the enclosure.
Part Context
This part belongs to the BV030 series of laminated core transformers from Pulse Electronics. These components are widely used in applications requiring reliable isolation between primary mains voltage and secondary low-voltage circuits. The series is characterized by its standardized pinout and consistent performance across various industrial and commercial power supply designs.
Replacement Considerations
Direct replacements must match the 6VA rating, 115V/230V primary specification, and the specific 9V/18V secondary configurations. Verify that alternative parts support the same through-hole mounting style and have compatible physical dimensions to fit existing PCB footprints without modification.
