BWCM0012070723NG00

Fixed Inductors Overview

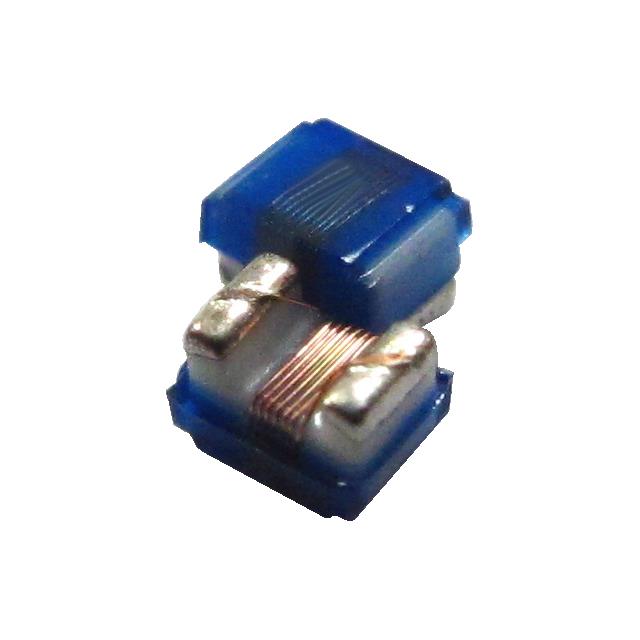

The BWCM0012070723NG00 is an unshielded surface-mount RF inductor from Pulse Electronics, part of the BWCM series. It features a ceramic core and wirewound construction within a 0402 (1.0 x 0.5 mm) package. The component provides an inductance of 23 nH with a tolerance of ±2%. It operates at a test frequency of 250 MHz, achieving a minimum Q factor of 28. The self-resonant frequency is 2.6 GHz, with a maximum DC resistance of 1.9 Ohms and a saturation current of 350 mA.

Fixed Inductors Feature Summary

• Utilizes a ceramic core for stable high-frequency performance
• Designed specifically for RF applications in compact SMD form factors
• Offers precise inductance control with tight manufacturing tolerances

Fixed Inductors Applications

• Cellular phone RF circuits
• GPS receiver signal processing
• Base station filtering components
• Remote control transmitters
• Security system antennas

Fixed Inductors Procurement Notes

Verify the specific datasheet version for the BWCM0012070723NG00 to confirm RoHS compliance status and exact electrical limits. Ensure that the PCB footprint matches the 0402 metric dimensions precisely. Cross-reference the manufacturer's ordering suffixes to guarantee the correct tape-and-reel packaging configuration is received. Confirm availability through authorized distributors as supply chain data may vary.

Fixed Inductors Selection Notes

Select this component when a 23 nH inductance value is required for RF signal paths. The unshielded design necessitates careful layout planning to minimize electromagnetic interference with adjacent traces. Consider the 350 mA saturation current limit against the circuit's peak operating current. The 2.6 GHz self-resonant frequency supports operation well above the 250 MHz test frequency.

Fixed Inductors Part Context

This part belongs to the BWCM series of chip beads and RF inductors manufactured by Pulse Electronics. These components are engineered for high-reliability applications in consumer electronics and telecommunications. The series emphasizes small footprints suitable for modern miniaturized devices while maintaining consistent electrical characteristics across production batches.

Fixed Inductors Replacement Considerations

Direct substitutes include other 23 nH ±2% 0402 RF inductors from manufacturers such as Murata or TDK. Verify that replacement parts match the 1.9 Ohm DCR and 350 mA saturation current specifications. Ensure the alternative component maintains a similar self-resonant frequency to preserve circuit impedance matching.
