BWLS00241715150K00

Fixed Inductors Overview

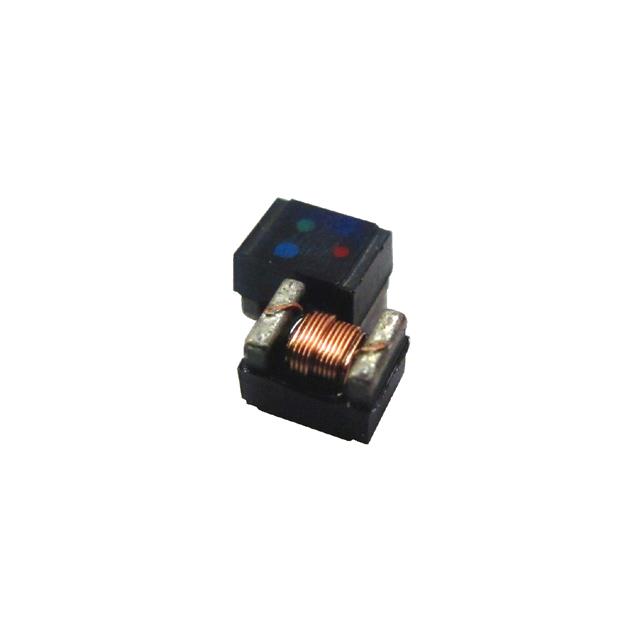

The BWLS00241715150K00 is an unshielded wirewound RF inductor from Pulse Electronics, housed in a compact 0805 (2012 metric) surface-mount package. It features a ferrite core and provides a nominal inductance of 15 uH with a tolerance of 10%. The component supports a maximum DC current and saturation current of 350 mA, while maintaining a maximum DC resistance of 3.55 Ohms. Designed for high reliability applications, it operates within a temperature range of -40 C to +105 C, ensuring stable performance in demanding electronic circuits.

Fixed Inductors Feature Summary

• Unshielded wirewound construction utilizing a ferrite core for RF signal handling
• Compact 0805 surface-mount footprint suitable for space-constrained PCB layouts
• High reliability design optimized for consistent performance in critical applications

Fixed Inductors Applications

• RF circuit filtering and impedance matching
• High reliability electronic systems requiring stable inductance
• Wire wound standard RF inductor implementations

Fixed Inductors Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure compatibility with specific design requirements. Confirm that the 0805 package dimensions and electrical parameters align with the target PCB layout and circuit specifications before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component when an unshielded wirewound inductor with a 15 uH value is required in an 0805 package. Ensure the application current does not exceed the 350 mA saturation limit and that the operating environment falls within the specified temperature range for optimal performance.

Fixed Inductors Part Context

This component belongs to the BWLS series of RF inductors manufactured by Pulse Electronics. The series utilizes wirewound technology on ferrite cores, providing standardized solutions for radio frequency applications. The BWLS designation indicates a specific form factor and electrical characteristic set within the broader product line.

Fixed Inductors Replacement Considerations

Consult official distributor databases for cross-referenced alternatives. Verify that any substitute matches the 15 uH inductance, 0805 package size, and 350 mA current rating to maintain circuit integrity.
