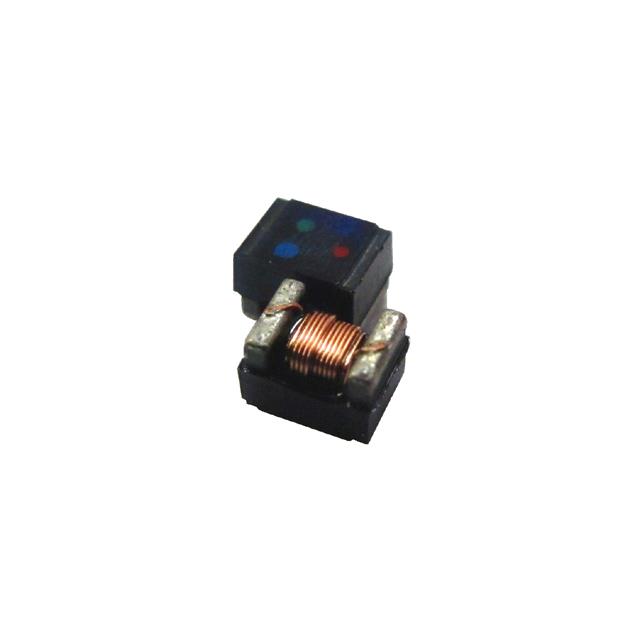

BWNC002925221R5J00 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is INDUCTOR RF. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for BWNC002925221R5J00
- Description：INDUCTOR RF
- Series：BWNC
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR)
- Type：Drum Core, Wirewound
- Material - Core：Ferrite
- Inductance：1.5 µH
- Tolerance：±5%
- Current Rating (Amps)：-
- Current - Saturation (Isat)：1.4A
- Shielding：Unshielded
- DC Resistance (DCR)：420mOhm Max
- Q @ Freq：25 @ 7.96MHz
- Frequency - Self Resonant：270MHz
- Ratings：-
- Operating Temperature：-25°C ~ 105°C
- Inductance Frequency - Test：7.96 MHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.115" L x 0.098" W (2.92mm x 2.50mm)
- Height - Seated (Max)：0.087" (2.20mm)
- Features：-
Fixed Inductors datasheet and documents for BWNC002925221R5J00
