BX-100.000MBE-T

Oscillators Overview

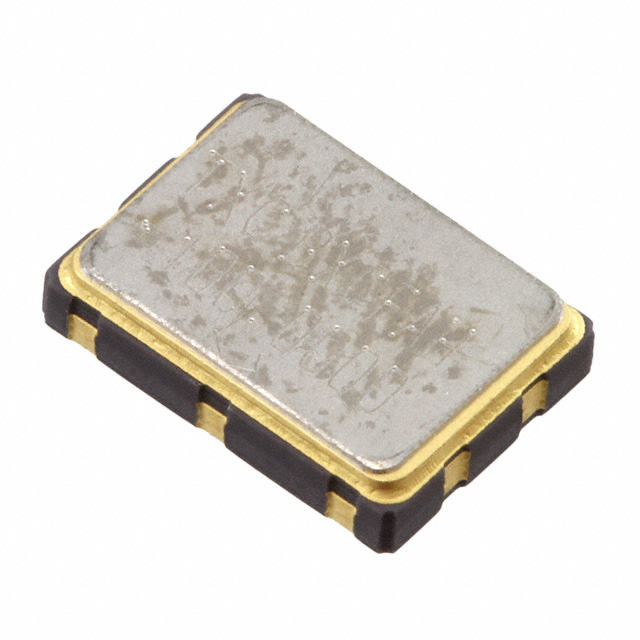

The BX-100.000MBE-T is a standard clock oscillator manufactured by TXC Corporation, operating at a nominal frequency of 100 MHz. It utilizes a quartz crystal resonator and features an HCSL output format. The device supports a supply voltage range from 2.5 V to 3.3 V and maintains a frequency stability of ±50 ppm across the specified temperature range. Designed for surface mount applications, it is housed in a compact 6-SMD, no-lead package measuring 7.00 mm x 5.00 mm with a maximum height of 1.50 mm. The component operates within a temperature range of -40°C to +85°C.

Oscillators Feature Summary

• Generates a stable 100 MHz clock signal using an HCSL output interface.
• Operates on a single supply voltage ranging from 2.5 V to 3.3 V.
• Provides ±50 ppm frequency stability over the industrial temperature range.

Oscillators Applications

• High-speed digital logic circuit synchronization
• Data communication bus timing references
• Processor and memory subsystem clock generation

Oscillators Procurement Notes

Verify the specific output format against design requirements, as datasheet sources indicate potential discrepancies between LVPECL and HCSL variants for this part number. Confirm current availability status, as some records list the component as obsolete or end-of-life. Ensure the selected variant matches the required supply voltage and package dimensions for PCB layout compatibility.

Oscillators Selection Notes

Select this component when an HCSL output interface is required for 100 MHz applications. Consider the 6-SMD package size for space-constrained designs. Verify that the ±50 ppm stability meets system jitter and timing budget constraints. Compare against the BB series if LVPECL outputs are preferred instead.

Oscillators Part Context

This model belongs to the BX series of standard clock oscillators from TXC Corporation. It serves as a precise timing source for electronic systems requiring a fixed 100 MHz reference. The series is characterized by its small form factor and low power consumption suitable for modern portable and high-density electronics.

Oscillators Replacement Considerations

The BB-100.000MBE-T is a related part but typically features an LVPECL output rather than HCSL. Direct substitution requires verifying interface compatibility. Other 100 MHz HCSL oscillators from different manufacturers may serve as alternatives if pinout and electrical specifications align.
