BX-125.000MBE-T

Oscillators Overview

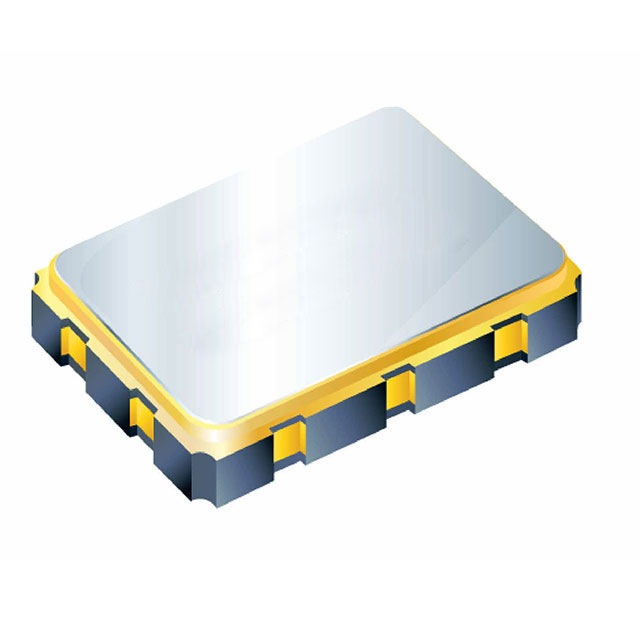

The BX-125.000MBE-T is a standard crystal oscillator manufactured by TXC Corporation, operating at a nominal frequency of 125 MHz. It utilizes an HCSL output format and requires a 3.3V supply voltage. The device features enable/disable functionality and offers a frequency stability of ±50 ppm. Designed for surface mount installation, it is housed in a compact 6-SMD, No Lead package with dimensions of 7.00mm x 5.00mm x 1.50mm. The component supports an industrial operating temperature range from -40°C to +85°C.

Oscillators Feature Summary

• HCSL differential output interface for high-speed signal integrity
• Integrated enable and disable control function
• Compact 6-SMD no-lead surface mount packaging

Oscillators Applications

• High-speed digital communication systems requiring precise clocking
• Data acquisition equipment needing stable timing references
• Industrial control boards operating in wide temperature environments

Oscillators Procurement Notes

Verify the specific suffix and revision level against the manufacturer's latest datasheet to ensure compatibility with current design requirements. Confirm that the HCSL output voltage levels match the receiving logic inputs. Check for any recent product change notices or lifecycle status updates prior to finalizing procurement orders.

Oscillators Selection Notes

Select this component when an HCSL output format is required for the target application. Ensure the 3.3V supply voltage aligns with the system power architecture. Verify that the ±50 ppm frequency stability meets the jitter and phase noise specifications of the connected circuitry. Confirm the 6-SMD footprint fits within the available PCB area constraints.

Oscillators Part Context

This part belongs to the BX series of standard quartz oscillators from TXC Corporation. The series provides various frequency options and output formats tailored for different electronic applications. The BX-125.000MBE-T specifically addresses the need for 125 MHz clock signals with HCSL outputs in a small form factor suitable for dense board layouts.

Oscillators Replacement Considerations

Consult official substitution guides for equivalent parts with matching HCSL outputs and 125 MHz frequency. Verify pinout compatibility and thermal characteristics before replacing the component in existing designs.
