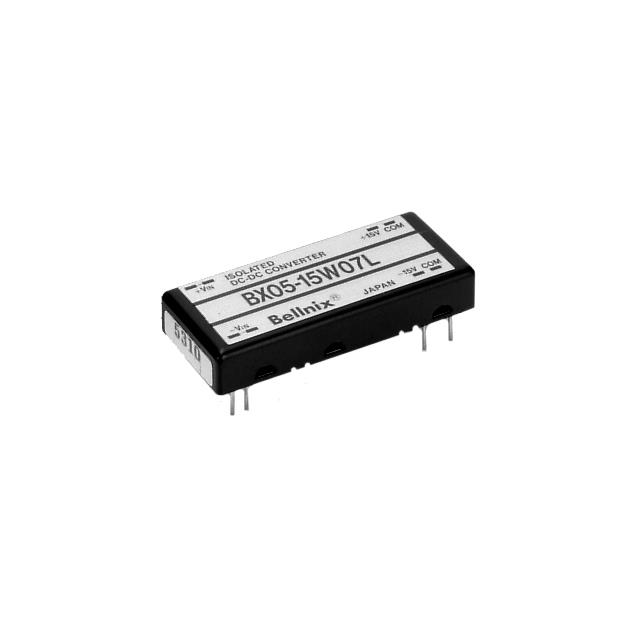

BX05-15W07L

BX05-15W07L is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Bellnix Co., Ltd.. Its product description is DC DC CONVERTER +/-15V 21W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BX05-15W07L

• Description：DC DC CONVERTER +/-15V 21W
• Series：BX-L (2W)
• Mfr：Bellnix Co., Ltd.
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.75V
• Voltage - Input (Max)：6V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：70mA, 70mA
• Power (Watts)：21 W
• Voltage - Isolation：500 V
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-25°C ~ 71°C (With Derating)
• Efficiency：60%
• Mounting Type：Through Hole
• Package / Case：34-DIP Module, 8 Leads
• Size / Dimension：1.93" L x 0.79" W x 0.39" H (49.0mm x 20.0mm x 9.8mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for BX05-15W07L
