BX1194WNLT

Overview

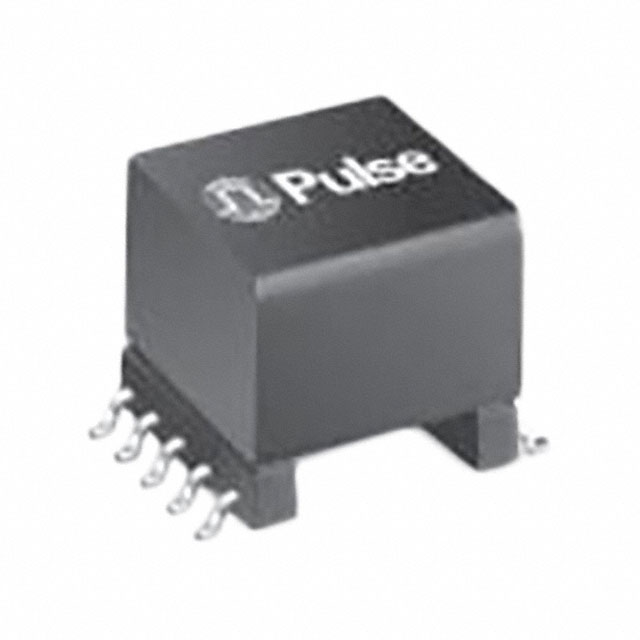

The BX1194WNLT is a surface-mount pulse transformer manufactured by Pulse Electronics Corporation. It is designed for SHDSL applications and features a 3000uH inductance with a 4.5:1 turns ratio. The component utilizes a 10-pin SMD package and operates within a temperature range of -40°C to +85°C. It is RoHS compliant and specifically engineered for use with Infineon chipsets.

Feature Summary

• Optimized for SHDSL line transmission
• Engineered compatibility with Infineon chipsets
• Surface mount construction for automated assembly

Applications

• SHDSL line interface circuits
• Infineon chipset-based communication modules
• Digital subscriber line equipment

Procurement Notes

Verify the specific manufacturer datasheet to confirm pinout configuration and electrical characteristics against your design requirements. Ensure that the operating temperature range of -40°C to +85°C aligns with your system's environmental conditions. Confirm RoHS compliance status through official documentation before finalizing procurement decisions.

Selection Notes

Select this component when designing SHDSL interfaces requiring integration with Infineon hardware solutions. The 4.5:1 ratio suits specific impedance matching needs for this chipset family. Consider the 10-pin SMD footprint for PCB layout constraints and ensure thermal management supports the specified operating limits.

Part Context

This part belongs to the Pulse Transformers product line, focusing on signal conditioning for digital telecommunication standards. It serves as a critical isolation and impedance matching element in high-speed data transmission systems, specifically tailored for the SHDSL protocol stack.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
