Product Detailed Parameters
- Description：DIODE SCHOTTKY 100V 3A DO214AC
- Series：-
- Mfr：Panjit International Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：100 V
- Current - Average Rectified (Io)：3A
- Voltage - Forward (Vf) (Max) @ If：800 mV @ 3 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：50 µA @ 100 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount

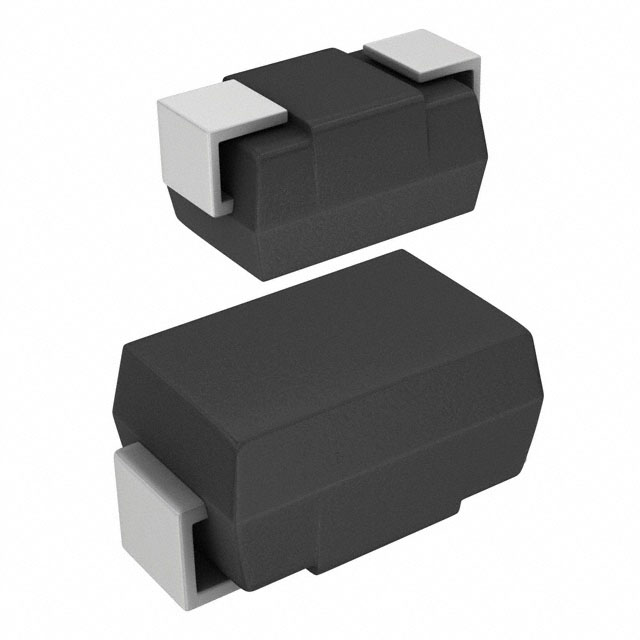

- Package / Case：DO-214AC, SMA
- Supplier Device Package：DO-214AC (SMA)
- Operating Temperature - Junction：-65°C ~ 175°C
- Grade：-
- Qualification：-
Download product information
Overview
The BX310_R1_00001 is a Schottky rectifier manufactured by Panjit International Inc. It features a 100V repetitive peak reverse voltage and a 3A average forward rectified current rating. The device utilizes Silicon technology and is housed in an SMA (DO-214AC) surface-mount package. It belongs to the SBM-30AAH series, designed for efficient power conversion applications requiring low forward voltage drop characteristics.
Feature Summary
- Schottky barrier construction for high switching efficiency
- Surface-mount SMA (DO-214AC) package design
- Silicon-based semiconductor technology
Applications
- General-purpose DC/DC converters
- Power supply rectification circuits
- Reverse polarity protection
Procurement Notes
Verify the specific datasheet for the BX310_R1_00001 variant to confirm exact electrical parameters and thermal characteristics. Ensure compatibility with standard SMA footprint layouts during PCB design. Confirm RoHS compliance status through official manufacturer documentation prior to final procurement decisions.
Selection Notes
Select this component when a 100V blocking capability and 3A continuous current are required in a compact SMA package. Consider the low forward voltage characteristic for improved efficiency in low-voltage output stages. Verify that the operating temperature range meets the specific environmental requirements of the target application circuit.
Part Context
This part belongs to Panjit's SBM-30AAH series of Schottky rectifiers. These devices are engineered for general-purpose rectification in space-constrained surface-mount designs. The series offers a balance of current handling capacity and voltage rating suitable for various consumer and industrial power management solutions.
Replacement Considerations
Consult official Panjit documentation for verified substitute part numbers. Cross-reference specifications such as forward voltage, reverse leakage current, and package dimensions when evaluating alternative components from other manufacturers.
