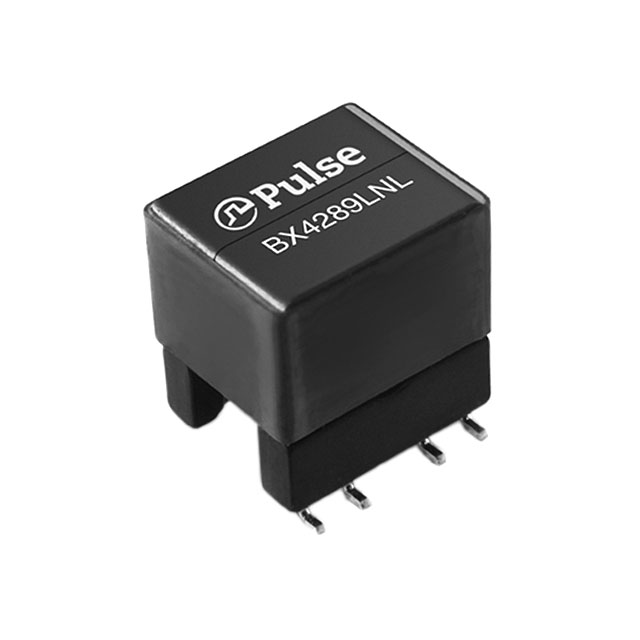

BX4289LNL

Description：PULSE XFMR 1.4:1 100UH
Series：-
Mfr：Pulse Electronics
Package：Tray

SKU:2e8bd5111c89 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PULSE XFMR 1.4:1 100UH
Series：-
Mfr：Pulse Electronics
Package：Tray
Transformer Type：VDSL
Inductance：100µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1.4:1
Mounting Type：Surface Mount
Size / Dimension：0.386" L x 0.354" W (9.80mm x 9.00mm)
Height - Seated (Max)：0.425" (10.80mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

BX4289LNL

Overview

The BX4289LNL is a surface-mount pulse transformer manufactured by Pulse Electronics. It features an inductance of 100µH and a turns ratio of 1.4:1. Designed for VDSL applications, this component utilizes a tray packaging format. The device supports network transmission requirements with specific magnetic characteristics suitable for digital subscriber line interfaces.

Feature Summary

Supports VDSL signal transmission
Surface-mount construction

Applications

VDSL networks

Procurement Notes

Verify the exact manufacturer designation and RoHS compliance status through official datasheets or authorized distributor documentation before integration. Confirm that the 1.4:1 ratio and 100µH inductance align with the target circuit design specifications to ensure proper signal integrity and impedance matching.

Selection Notes

Select this component specifically for VDSL interface designs requiring a 1.4:1 transformation ratio. Ensure the PCB layout accommodates the surface-mount package dimensions and tray-based handling requirements. Validate thermal performance within the operating environment against the manufacturer's published limits.

Part Context

This part belongs to the pulse transformer category from Pulse Electronics, targeting telecommunications infrastructure. It serves as a magnetic coupling element for high-speed data lines, distinguishing it from general-purpose power transformers through its specific frequency response and ratio characteristics.
