BX6158NL

Overview

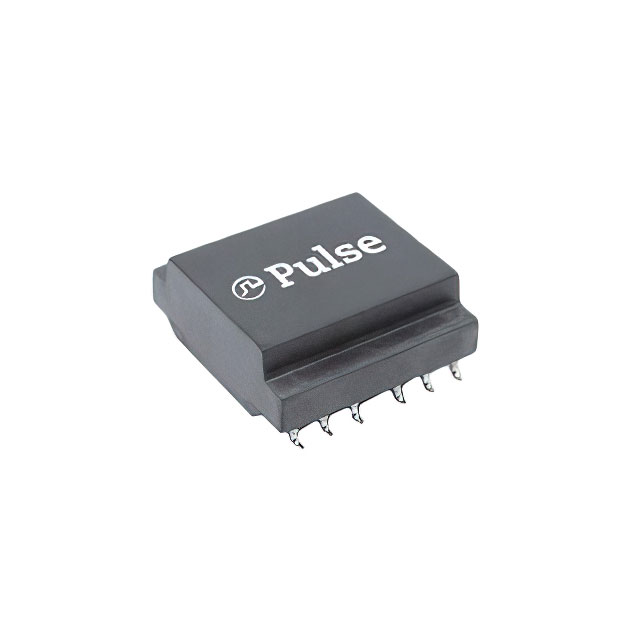

The BX6158NL is a surface-mount pulse transformer manufactured by Pulse Electronics. It features an inductance of 20µH and a turns ratio of 1:1:1. The component supports a high insulation voltage of 3kV and includes a 2% tolerance specification. It is qualified under the AEC-Q200 standard, indicating suitability for automotive environments. The physical dimensions are 11.31 mm in length, 10.43 mm in width, and 7.3 mm in height.

Feature Summary

• AEC-Q200 qualified for automotive reliability
• High insulation voltage capability of 3kV
• Surface mount package design

Applications

• Power Line Communication systems

Procurement Notes

Verify the specific ordering suffix to ensure the correct packaging configuration, as tube packaging is documented. Confirm that the AEC-Q200 qualification aligns with your target application's environmental requirements. Check the manufacturer's lead time information prior to finalizing procurement plans to avoid production delays.

Selection Notes

Select this component when designing Power Line Communication circuits requiring robust isolation. The 1:1:1 ratio and 20µH inductance define its signal coupling characteristics. Ensure the PCB footprint accommodates the specified 11.31 mm x 10.43 mm x 7.3 mm dimensions for proper surface mounting.

Part Context

This part belongs to the BX series of audio and signal transformers from Pulse Electronics. It is categorized specifically for power line communication applications rather than general-purpose signal isolation. The device represents a specialized solution for transmitting data over power lines while maintaining electrical safety standards.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official distributor databases for cross-reference options if direct replacement is required.
