Product Detailed Parameters
- Description：DIODE 600V 8A TO-220F SOD113
- Series：*
- Mfr：NXP USA Inc.
- Package：Bulk
- Technology：-
- Voltage - DC Reverse (Vr) (Max)：-
- Current - Average Rectified (Io)：-
- Voltage - Forward (Vf) (Max) @ If：-
- Speed：-
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：-
- Capacitance @ Vr, F：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Operating Temperature - Junction：-
- Grade：-
- Qualification：-
Download product information
Overview

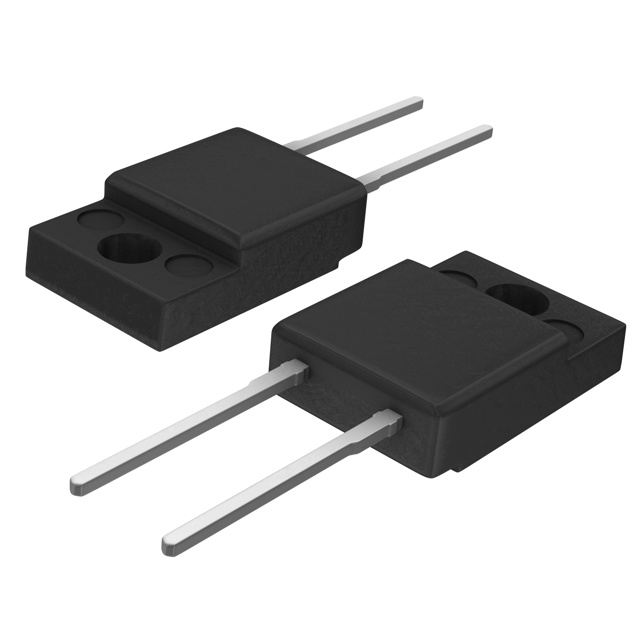

The BYC58X-600,127 is a single hyperfast rectifier diode manufactured by NXP USA Inc. It features a maximum repetitive peak reverse voltage of 600 V and an average forward rectified current of 8 A. The device utilizes a TO-220F (SOD113) plastic package with three terminals. Key electrical characteristics include a maximum non-repetitive peak surge current of 200 A and a typical recovery time of 35 ns. The component operates within a junction temperature range of -40°C to 175°C.
Feature Summary
- Hyperfast recovery characteristics for efficient switching applications
- Plastic encapsulated leaded package for thermal stability
- High surge current capability for robust operation
Applications
- General purpose rectification in power supplies
- Free-wheeling diodes in inductive load circuits
- DC-DC converter output rectification
Procurement Notes
Verify the specific suffix
Selection Notes
Select this component when a standard 600V, 8A rectifier with hyperfast recovery is required. Ensure the application voltage does not exceed the 600V rating and that the thermal management supports the TO-220F package dissipation. Confirm compatibility with the target PCB footprint for the SOD113/TO-220F form factor.
Part Context
This part belongs to the BYC58 series of hyperfast rectifiers from NXP Semiconductors. These diodes are designed for high-frequency switching applications where fast recovery is critical to minimize losses. The series offers a balance of high voltage blocking capability and moderate current handling in a cost-effective plastic package.
Replacement Considerations
Consult official substitution guides for equivalent parts. Generic replacements must match the 600V VR, 8A IF, and TO-220F package constraints.
