Product Detailed Parameters
- Description：DIODE STANDARD 200V 60A DO208
- Series：-
- Mfr：Diotec Semiconductor
- Package：Cut Tape (CT),Tape & Box (TB)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：200 V
- Current - Average Rectified (Io)：60A
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 60 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：1.5 µs
- Current - Reverse Leakage @ Vr：100 µA @ 200 V
- Capacitance @ Vr, F：-
- Mounting Type：Through Hole
- Package / Case：DO-208AA
- Supplier Device Package：DO-208
- Operating Temperature - Junction：-50°C ~ 200°C
- Grade：-
- Qualification：-
Download product information
Overview

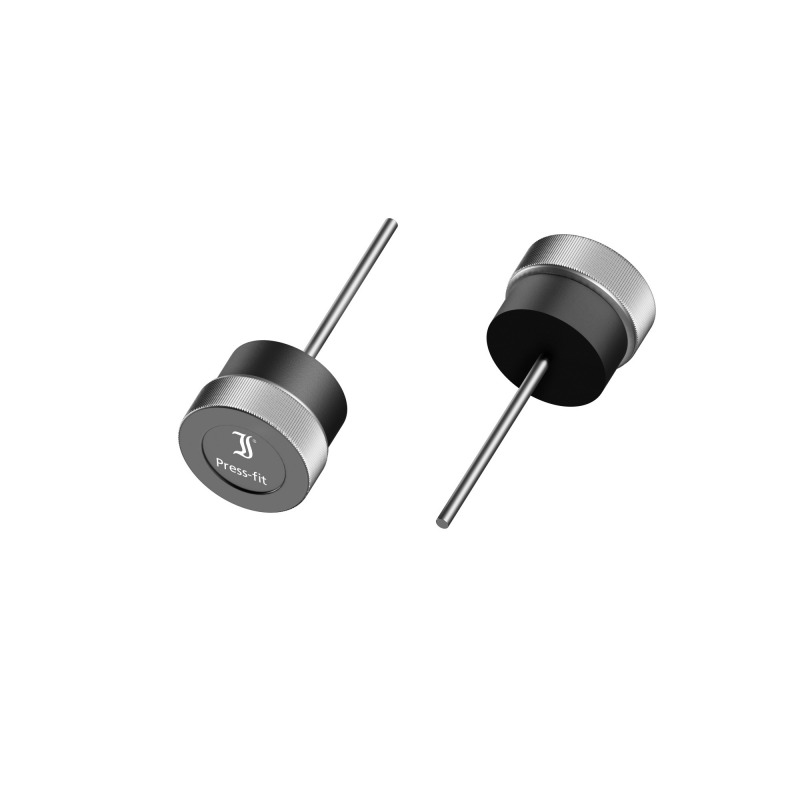

The BYP60K2 is a standard recovery press-fit rectifier diode manufactured by Diotec Semiconductor. It features a cylindrical body with dimensions of Ø12.75x4.2mm and utilizes a cathode-on-wire semiconductor structure. The device supports a maximum load current of 60A and a peak load current of 190A. Rated for a voltage of 200V, it is designed for through-hole mounting via press-fit technology.
Feature Summary
- Standard recovery characteristics for efficient switching applications
- Press-fit mounting technology for secure mechanical connection
- Cathode-on-wire configuration for specific circuit integration
Applications
- Power supply circuits requiring robust rectification
- Industrial electronics utilizing press-fit assembly methods
- General-purpose rectification in low-to-medium voltage systems
Procurement Notes
Verify the specific datasheet version to confirm thermal and electrical ratings. Ensure the PCB or chassis design accommodates the Ø12.75mm diameter and 4.2mm height. Confirm that the press-fit installation process aligns with the component's mechanical specifications for reliable long-term performance.
Selection Notes
Select this component when a 200V rating and 60A continuous current capacity are required. The press-fit interface eliminates traditional soldering for the main connection, offering a distinct mechanical advantage over standard axial leads. Consider the physical dimensions for enclosure space constraints.
Part Context
This part belongs to Diotec's standard recovery rectifier lineup, specifically engineered for press-fit applications. It complements other high-current diodes by providing a specialized mounting solution suitable for automated assembly processes in industrial and commercial power equipment sectors.
Replacement Considerations
Direct substitutes must match the 200V rating, 60A current capacity, and press-fit form factor. Verify pinout compatibility, noting the cathode-on-wire structure. Cross-reference with other manufacturers' press-fit rectifiers if Diotec stock is unavailable.
