Product Detailed Parameters
- Description：DIODE STANDARD 600V 10A DPAK
- Series：-
- Mfr：WeEn Semiconductors
- Package：Tape & Reel (TR)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：600 V
- Current - Average Rectified (Io)：10A
- Voltage - Forward (Vf) (Max) @ If：1.3 V @ 10 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：100 ns
- Current - Reverse Leakage @ Vr：10 µA @ 600 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount

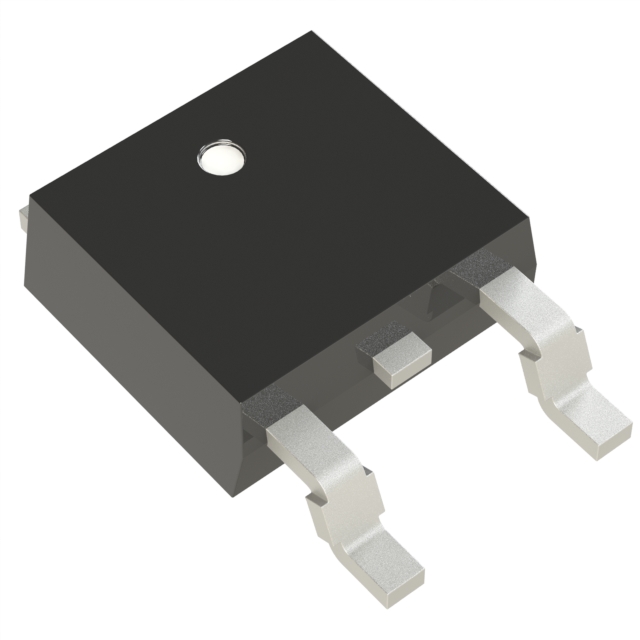

- Package / Case：TO-252-3, DPAK (2 Leads + Tab), SC-63
- Supplier Device Package：DPAK
- Operating Temperature - Junction：175°C
- Grade：-
- Qualification：-
Download product information
Overview
The BYV10D-600PJ is a fast recovery rectifier manufactured by WeEn Semiconductors. It features a peak repetitive reverse voltage of 600 V and a maximum average forward current of 10 A. The device exhibits a typical forward voltage of 1.3 V and a maximum reverse leakage current of 10 uA. Its peak non-repetitive surge current rating is 132 A, with a maximum reverse recovery time of 100 ns. The component is housed in a TO-252 (DPAK) surface-mount package.
Feature Summary
- Fast recovery characteristics suitable for high-frequency switching applications
- Low thermal resistance plastic encapsulation for efficient heat dissipation
- Soft reverse recovery behavior to minimize electromagnetic interference
Applications
- High frequency switch mode power supplies
- Output rectification in DC/DC converters
- Free-wheeling diodes in inductive load circuits
Procurement Notes
Verify the specific suffix PJ against official datasheets to confirm marking orientation and tape-and-reel specifications. Ensure compatibility with standard DPAK footprint dimensions during PCB layout. Confirm RoHS compliance status through manufacturer documentation prior to final procurement decisions.
Selection Notes
Select this component when a compact surface-mount solution is required for medium-current rectification. The 10 A rating and 600 V blocking capability suit general-purpose industrial power supplies. Evaluate thermal management requirements based on the DPAK package's limited heat sinking area compared to larger through-hole alternatives.
Part Context
This part belongs to the BYV series of ultrafast power diodes from WeEn Semiconductors. The series utilizes platinum-doped SABER technology to achieve fast switching speeds. The DPAK package variant provides a balance between current handling capacity and board space efficiency for modern electronic designs.
Replacement Considerations
Cross-reference with BYV10D-600P or BYV10MX-600PQ for similar electrical ratings. Verify pinout compatibility and thermal performance differences before substituting. Check manufacturer obsolescence notices for alternative packages within the same voltage and current class.
