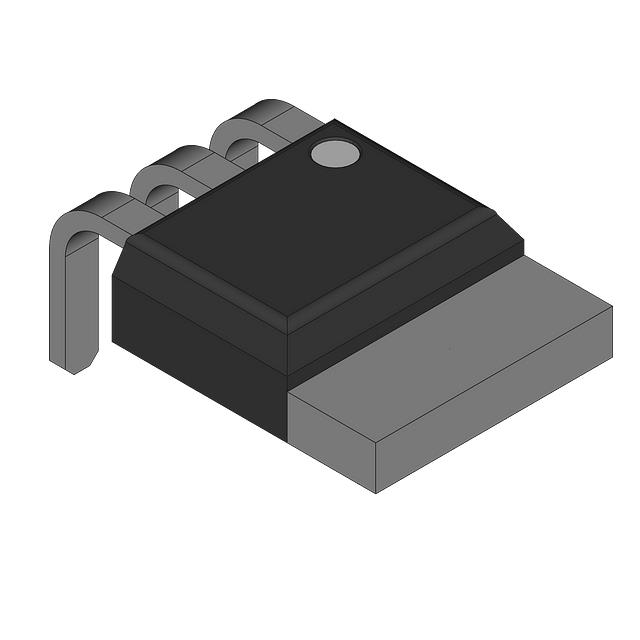

BYV25G-600,127

$0.37

Description：DIODE STANDARD 600V 5A I2PAK
Series：-
Mfr：WeEn Semiconductors
Package：Bulk

SKU:fd08070d8084 Category: Single Diodes Brand: WeEn Semiconductors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE STANDARD 600V 5A I2PAK
Series：-
Mfr：WeEn Semiconductors
Package：Bulk
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：600 V
Current - Average Rectified (Io)：5A
Voltage - Forward (Vf) (Max) @ If：1.3 V @ 5 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：60 ns
Current - Reverse Leakage @ Vr：50 µA @ 600 V
Capacitance @ Vr, F：-
Mounting Type：Through Hole
Package / Case：TO-262-3 Long Leads, I2PAK, TO-262AA
Supplier Device Package：I2PAK (TO-262)
Operating Temperature - Junction：150°C (Max)
Grade：-
Qualification：-

Download product information

BYV25G-600,127

Overview

The BYV25G-600,127 is a high-speed switching diode manufactured by WeEn Semiconductors. It features a glass passivated junction and is housed in a compact SOD80C surface-mount package. The device is rated for a maximum repetitive peak reverse voltage of 600 V and a continuous forward current of 1 A. It exhibits low forward voltage drop and fast recovery characteristics, making it suitable for efficient power conversion applications.

Feature Summary

Glass passivated junction for enhanced reliability
Compact SOD80C surface-mount package design
High switching speed with low forward voltage

Applications

DC/DC converters
Freewheeling diodes in power supplies
Reverse battery protection circuits

Procurement Notes

Verify the complete part number including the suffix to ensure correct packaging configuration. Confirm that the specified voltage and current ratings align with your circuit requirements. Check the datasheet for thermal management guidelines and soldering profiles to ensure proper integration into your assembly process.

Selection Notes

Select this component when a small form factor is required alongside moderate current handling capabilities. Ensure the operating temperature range meets your environmental specifications. Compare the reverse leakage current and recovery time against alternative devices if high-frequency performance is critical for your specific application design.

Part Context

This diode belongs to the BYV25G series, which offers various voltage ratings within the same package family. The SOD80C package allows for automated placement, reducing manufacturing costs. It serves as a general-purpose rectifier solution for consumer electronics and industrial control systems requiring reliable switching performance.

Replacement Considerations

Direct substitutes may include other 600V, 1A diodes in SOD80C packages from different manufacturers. Verify pin compatibility and electrical parameters such as forward voltage and reverse recovery time before substitution. Consult official cross-reference lists for validated alternatives.
