Product Detailed Parameters
- Description：DIODE GEN PURP TO220F
- Series：-
- Mfr：WeEn Semiconductors
- Package：Tube
- Technology：-
- Voltage - DC Reverse (Vr) (Max)：-
- Current - Average Rectified (Io)：-
- Voltage - Forward (Vf) (Max) @ If：-
- Speed：-
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：-
- Capacitance @ Vr, F：-
- Mounting Type：Through Hole
- Package / Case：TO-220-2 Full Pack, Isolated Tab
- Supplier Device Package：TO-220F
- Operating Temperature - Junction：-
- Grade：-
- Qualification：-
Download product information
Overview

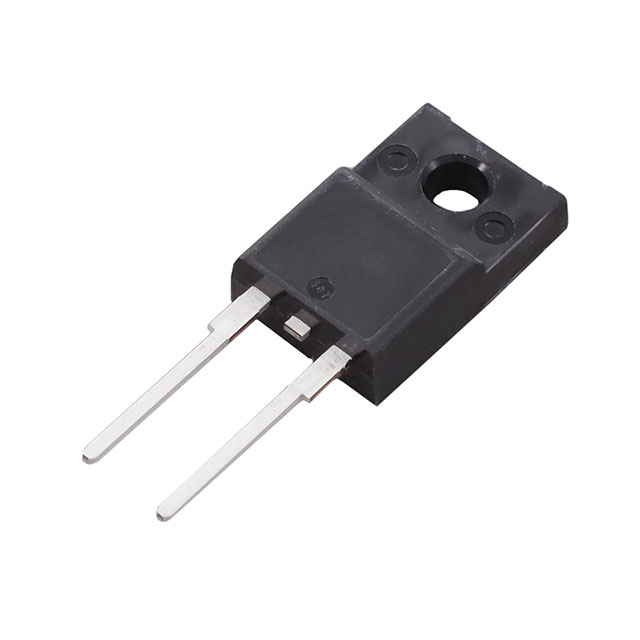

The BYV29X-600AQ is an ultrafast power diode manufactured by WeEn Semiconductors. It features a peak repetitive reverse voltage of 600 V and a maximum continuous forward current of 9 A. The device exhibits a peak non-repetitive forward surge current of 110 A and a typical peak reverse recovery time of 60 ns. It operates within a junction temperature range of -40°C to +175°C, with a maximum forward voltage of 1.4 V at rated current.
Feature Summary
- Ultrafast recovery characteristics for high-frequency switching applications
- High thermal stability supporting operation up to 175°C junction temperature
- Robust surge current handling capability
Applications
- High-frequency DC-DC converters
- Free-wheeling rectification in motor drives
- Snubber circuits in power supplies
Procurement Notes
Verify the specific suffix 'AQ' against the official manufacturer datasheet to confirm any distinct quality or environmental certifications compared to standard variants. Ensure the ordering part number matches the exact marking and package configuration required for your assembly process. Cross-reference with the latest product change notifications to confirm material compliance and manufacturing origin details.
Selection Notes
Select this component when designing circuits requiring fast reverse recovery times to minimize switching losses. The 600 V rating suits medium-voltage applications, while the 9 A current capacity supports moderate power levels. Consider the TO-220F package for efficient heat dissipation in through-hole designs where space allows for adequate thermal management relative to the power dissipation requirements.
Part Context
This device belongs to the BYV29X series of ultrafast recovery rectifiers from WeEn Semiconductors. The series is engineered for efficiency in hard-switching topologies. The AQ suffix typically denotes specific automotive or enhanced reliability standards, though verification against the official documentation is necessary to confirm exact qualification criteria.
Replacement Considerations
Direct substitutes include the BYV29-600 or BYV29X-600 from the same manufacturer family. Verify that alternative components match the 600 V reverse voltage, 9 A forward current, and 60 ns recovery time specifications to ensure circuit compatibility.
