Product Detailed Parameters
- Description：DIODE ZENER ARRAY 11V SOT-663
- Series：-
- Mfr：Nexperia USA Inc.
- Package：Bulk
- Configuration：1 Pair Common Anode
- Voltage - Zener (Nom) (Vz)：11 V
- Tolerance：±5%
- Power - Max：265 mW
- Impedance (Max) (Zzt)：10 Ohms
- Current - Reverse Leakage @ Vr：100 nA @ 8 V
- Operating Temperature：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- pa_package-case：
- Supplier Device Package：SOT-663
- Voltage - Forward (Vf) (Max) @ If：900 mV @ 10 mA
Download product information
Overview

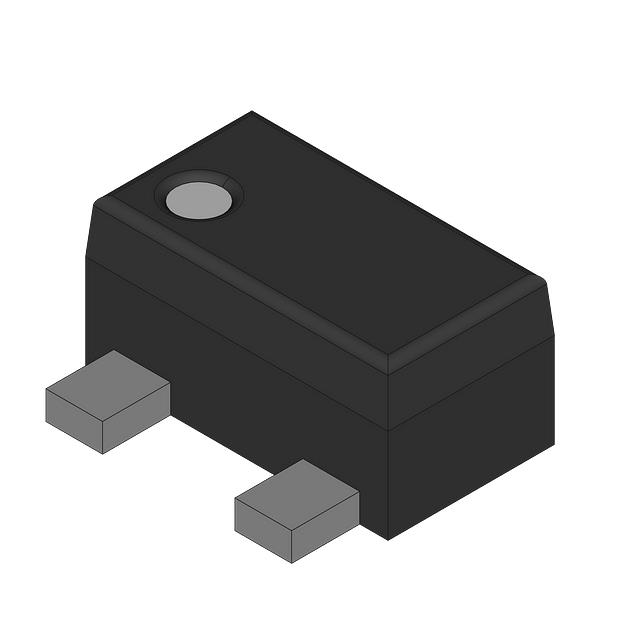

The BZB984-C11,115 is a Zener diode array manufactured by Nexperia USA Inc. It features a dual-diode configuration with one common anode and a nominal breakdown voltage of 11 V. The device is housed in a SOT-663 surface-mount package. It has a maximum power dissipation of 265 mW and a maximum dynamic impedance of 40 ohms. The forward voltage is typically 900 mV at 10 mA. The component operates within a temperature range from -55 °C to +150 °C.
Feature Summary
- Dual Zener diodes integrated into a single compact surface-mount package
- Common anode configuration for efficient circuit layout
- High thermal stability suitable for demanding environments
Applications
- Voltage reference circuits requiring dual stable voltages
- Transient voltage suppression in signal lines
- Clamping applications in digital logic interfaces
Procurement Notes
Verify the specific ordering code BZB984-C11,115 against official Nexperia documentation to confirm availability and lead times. Ensure compatibility with SOT-663 footprint requirements during PCB design. Check for RoHS compliance status if required by project specifications.
Selection Notes
Select this component when a dual Zener solution with common anode topology is needed in a small form factor. Compare the 11 V breakdown voltage against circuit requirements. Consider the 265 mW power rating for thermal management needs in the target application environment.
Part Context
This part belongs to the BZB984 series of Zener diode arrays from Nexperia. These devices are designed for general-purpose voltage regulation and protection tasks. The series offers various breakdown voltages to suit different electronic design requirements while maintaining consistent packaging and electrical characteristics.
Replacement Considerations
Check Nexperia's official substitution guide for equivalent parts within the BZB984 series or other compatible Zener arrays. Verify pinout compatibility and electrical parameters such as breakdown voltage tolerance and power dissipation before replacing.
