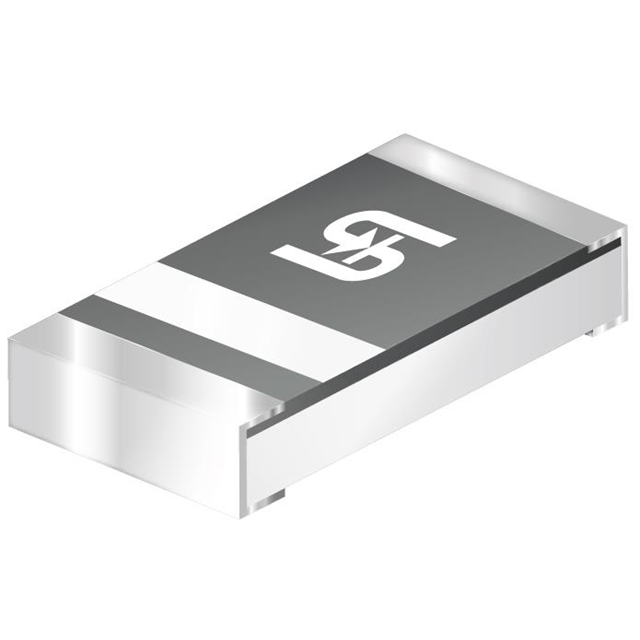

BZS55C10 RAG is listed in the Single Zener Diodes range at ChipApex. The manufacturer field lists Taiwan Semiconductor Corporation. Its product description is DIODE ZENER 10V 500MW 1206. Review the specifications below when checking this part for your BOM.
Single Zener Diodes specifications for BZS55C10 RAG
- Description：DIODE ZENER 10V 500MW 1206
- Series：-
- Mfr：Taiwan Semiconductor Corporation
- Package：Tape & Reel (TR)
- Voltage - Zener (Nom) (Vz)：10 V
- Tolerance：±5%
- Power - Max：500 mW
- Impedance (Max) (Zzt)：15 Ohms
- Current - Reverse Leakage @ Vr：100 nA @ 7.5 V
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：1206 (3216 Metric)
- Voltage - Forward (Vf) (Max) @ If：1.5 V @ 10 mA
- Grade：-
- Qualification：-
Single Zener Diodes datasheet and documents for BZS55C10 RAG
Single Zener Diodes Overview
The BZS55C10 RAG is a single-channel Zener diode manufactured by Taiwan Semiconductor Corporation. It features a nominal Zener voltage of 10 V with a tolerance of 5%. The device supports a maximum power dissipation of 500 mW and operates within a temperature range of -65 °C to +175 °C. It utilizes a MiniMELF surface-mount package with two pins, designed for compact circuit integration.
Single Zener Diodes Feature Summary
- Provides stable voltage regulation in small-scale designs
- Supports high-temperature operation up to 175 °C
- Utilizes MiniMELF surface-mount packaging
Single Zener Diodes Applications
- General voltage regulation
- Voltage reference functions
- Protection in high-density circuit designs
Single Zener Diodes Procurement Notes
Verify the specific manufacturer part number against official datasheets to confirm compatibility. Ensure the MiniMELF package dimensions align with PCB footprint requirements. Check for RoHS compliance status if required by project specifications. Confirm availability as distribution channels may vary.
Single Zener Diodes Selection Notes
Select this component for applications requiring a 10 V reference with 5% precision. The MiniMELF package suits space-constrained layouts. Verify thermal management capabilities for 500 mW dissipation at elevated ambient temperatures. Compare leakage current specifications against circuit sensitivity requirements.
Single Zener Diodes Part Context
This component belongs to the BZV55 series of Zener diodes, which offers comprehensive package options for customized protection solutions. The series is engineered for realization in small-scaled, high-density circuit designs, providing reliable performance for general regulation tasks.
Single Zener Diodes Replacement Considerations
Cross-reference with Vishay BZX55C10-TR or BZM55B10-TR for similar electrical characteristics. Verify pinout and package compatibility before substitution. Consult official manufacturer databases for confirmed equivalent part numbers.
