BZT52C5V1LP-TP

Single Zener Diodes Overview

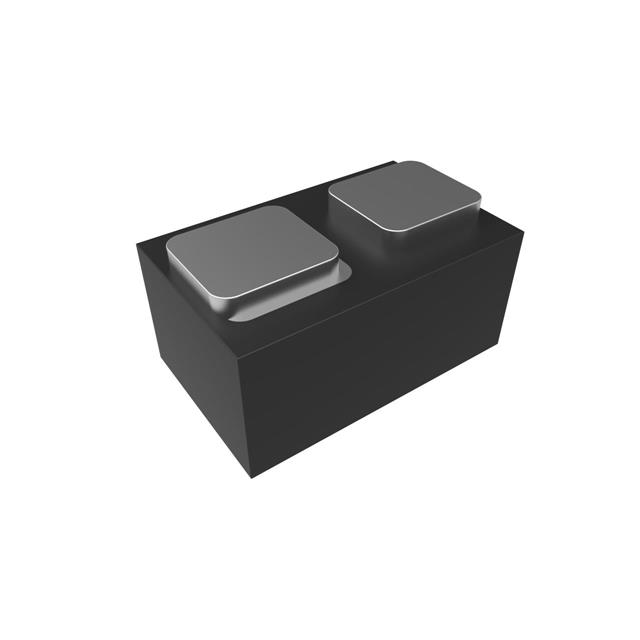

The BZT52C5V1LP-TP is a single Zener diode manufactured by Micro Commercial Components (MCC). It features a nominal Zener voltage of 5.1 V with a tolerance range of 4.8 V to 5.4 V at a test current of 5 mA. The device has a maximum power dissipation of 100 mW and operates within a junction temperature range of -65°C to +150°C. It utilizes an SOD-882 surface-mount package, measuring approximately 1.05 mm in length and 0.65 mm in width. Key electrical parameters include a maximum reverse leakage current of 2 µA at 2 V and a maximum Zener impedance of 60 Ohms.

Single Zener Diodes Feature Summary

• Ultra-small leadless surface mount package designed for automated assembly processes
• Epoxy material meets UL 94 V-0 flammability rating
• Moisture Sensitivity Level 1 classification

Single Zener Diodes Applications

• Voltage regulation circuits
• Clipping and clamping applications
• Reference voltage generation

Single Zener Diodes Procurement Notes

Verify the authenticity of the component through authorized MCC distributors or direct procurement channels to ensure traceability and compliance with quality standards. Confirm that the ordering suffix matches the required specifications, as variations may affect halogen-free status or packaging format. Review the manufacturer's datasheet for any recent product change notices regarding design or specification updates before finalizing orders.

Single Zener Diodes Selection Notes

Select this component when a compact surface-mount Zener diode with low power dissipation is required. The SOD-882 package offers space efficiency compared to larger packages. Ensure the application current does not exceed the 5 mA test current significantly to maintain voltage accuracy within the specified tolerance. Consider the thermal resistance of 1250 °C/W when designing heat dissipation strategies for high-density layouts.

Single Zener Diodes Part Context

This part belongs to the BZT52C series of Zener diodes from Micro Commercial Components, which covers a voltage range from 2.4 V to 39 V. The series is characterized by its small form factor and suitability for automated surface-mount technology assembly. The 'LP' suffix indicates the specific SOD-882 package type used for these ultra-small leadless devices.

Single Zener Diodes Replacement Considerations

Publicly confirmed parameter-equivalent substitutes include BZX884-B5V1,315 and BZX884-C5V1,315 from Nexperia USA Inc.
