BZT55B62

Single Zener Diodes Overview

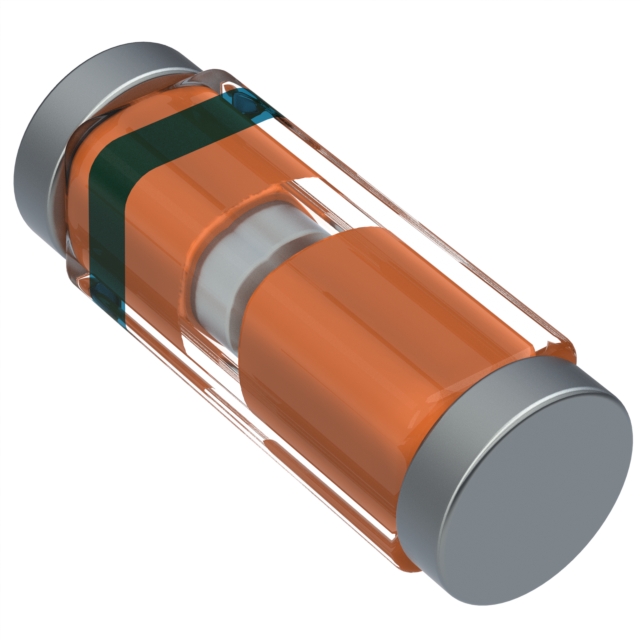

The BZT55B62 L0 is a small signal Zener diode manufactured by Taiwan Semiconductor. It features a nominal Zener voltage of 62V with a tolerance of ±2%. The device is rated for a maximum power dissipation of 500mW and utilizes a DO-35 axial leaded glass package. This component is designed for voltage regulation applications requiring stable reference voltages in small signal circuits.

Single Zener Diodes Feature Summary

• Provides precise voltage regulation with tight tolerance
• Utilizes hermetically sealed glass construction for reliability
• Designed for small signal voltage stabilization

Single Zener Diodes Applications

• Voltage stabilization circuits
• Reference voltage generation
• Overvoltage protection

Single Zener Diodes Procurement Notes

Verify current availability status as the product may be discontinued or subject to supply constraints. Confirm package type and marking codes match project requirements. Check RoHS compliance documentation for specific manufacturing batches. Ensure storage conditions adhere to manufacturer guidelines for glass-encapsulated semiconductors.

Single Zener Diodes Selection Notes

Select this component when a 62V Zener voltage with high precision is required in an axial package. Consider the 500mW power rating for thermal management in the target application. Evaluate the DO-35 form factor against board space constraints. Compare dynamic impedance characteristics if low noise performance is critical for the circuit design.

Single Zener Diodes Part Context

This part belongs to the BZT55 series of small signal Zener diodes from Taiwan Semiconductor. The series offers various voltage options within a standard DO-35 package, providing a consistent platform for voltage regulation needs across different electronic designs.

Single Zener Diodes Replacement Considerations

Cross-reference with other manufacturers offering DO-35 packaged Zener diodes at 62V with similar power ratings. Verify electrical parameters such as test current and dynamic impedance to ensure functional equivalence in existing circuit layouts.
