BZV55-C22,135

Single Zener Diodes Overview

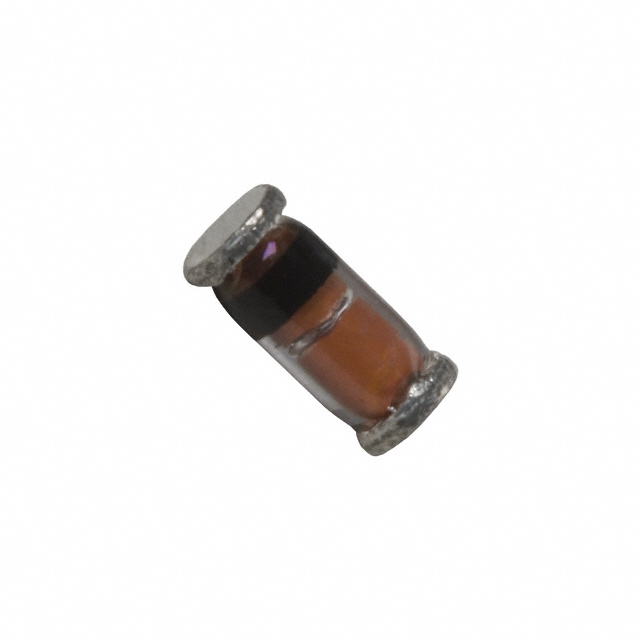

The BZV55-C22,135 is a silicon unidirectional voltage regulator diode from the NXP BZV55 series. It features a nominal Zener voltage of 22 V with a ±5% tolerance and a maximum power dissipation of 500 mW. The device is housed in a hermetically sealed glass SOD80C (MiniMELF) surface-mount package. It operates within a temperature range of -65 °C to +200 °C and complies with RoHS standards.

Single Zener Diodes Feature Summary

• Hermetically sealed glass MiniMELF package for high-density circuit designs
• Normalized E24 tolerance series with approximately ±5% accuracy
• Wide operating junction temperature range up to 200 °C

Single Zener Diodes Applications

• General regulation functions
• Voltage reference applications
• Protection in small scaled, high density circuit designs

Single Zener Diodes Procurement Notes

Verify the specific suffix

Single Zener Diodes Selection Notes

Select this component when a low-power, surface-mount Zener diode with a 22 V nominal breakdown is required. The MiniMELF package suits space-constrained layouts. Ensure the design accommodates the 500 mW power rating and the wide thermal operating range suitable for industrial or automotive environments.

Single Zener Diodes Part Context

This part belongs to the BZV55 series of low-power voltage regulator diodes manufactured by Nexperia (formerly NXP Semiconductors). The series offers various normalized voltages from 2.4 V to 75 V in small SMD packages, providing a standardized solution for voltage clamping and reference tasks in compact electronic assemblies.

Single Zener Diodes Replacement Considerations

Cross-reference with other manufacturers offering MiniMELF packaged Zener diodes with 22 V nominal voltage and 500 mW power rating. Verify pinout compatibility and thermal characteristics before substitution.
