BZV55C6V8-TP

Single Zener Diodes Overview

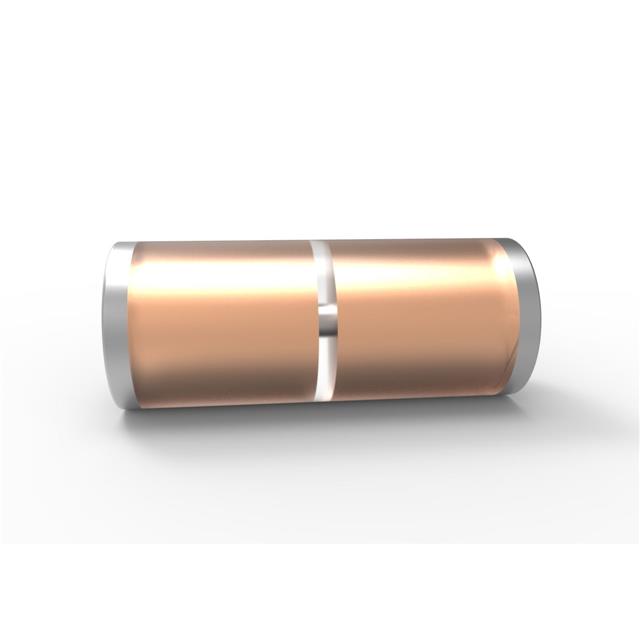

The BZV55C6V8-TP is a single Zener diode manufactured by Micro Commercial Components (MCC) in the MiniMELF surface-mount package. It features a nominal Zener voltage of 6.8 V with a tolerance range of 6.4 V to 7.2 V at a test current of 5 mA. The device has a maximum power dissipation of 500 mW and operates within a junction temperature range of -55°C to +175°C. Electrical characteristics include a maximum dynamic impedance of 8 Ohms, a reverse leakage current of 2 µA, and a forward voltage of 1.5 V. The component is lead-free and RoHS compliant.

Single Zener Diodes Feature Summary

• Miniature surface-mount construction suitable for automated assembly
• High reliability design utilizing glass-passivated silicon junction
• Lead-free finish compliant with environmental directives

Single Zener Diodes Applications

• Voltage reference circuits
• Overvoltage protection stages
• Clamping applications in signal paths

Single Zener Diodes Procurement Notes

Verify authenticity through authorized MCC distributors or direct procurement channels to avoid counterfeit components. Confirm that the ordering suffix indicates RoHS compliance and lead-free status. Ensure storage conditions align with moisture sensitivity level requirements prior to soldering.

Single Zener Diodes Selection Notes

Select this component when a compact surface-mount Zener regulator is required for low-power voltage stabilization. Consider the specific thermal resistance and power dissipation limits relative to the ambient operating environment. Verify that the 6.8 V nominal voltage aligns with the target circuit requirements.

Single Zener Diodes Part Context

This part belongs to the BZV55C series of Zener diodes produced by Micro Commercial Components. The series spans various voltage ratings from 2.0 V to 75 V, all sharing the MiniMELF form factor. The product line emphasizes small footprint solutions for modern electronic assemblies requiring reliable voltage regulation.

Single Zener Diodes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
