BZX284-C36,115

Single Zener Diodes Overview

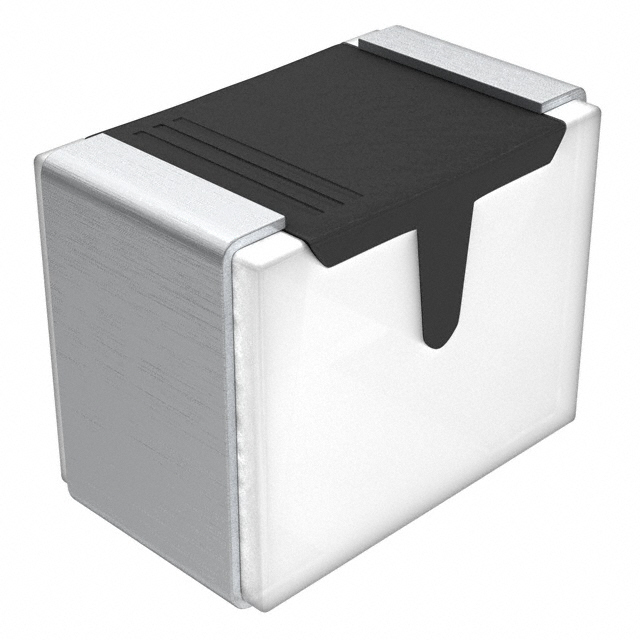

The BZX284-C36,115 is a low-power voltage regulator diode from the BZX284 series, manufactured by NXP Semiconductors. It operates within a nominal working voltage range of 2.4 to 75 V and features a ±5% tolerance series designation. The device is housed in a very small ceramic SMD package (SOD110) with a total power dissipation rating of up to 400 mW. Electrical characteristics include a differential resistance of 40 Ω maximum at an IZtest of 0.5 mA, and a temperature coefficient of 15 mV/K maximum at the same test current.

Single Zener Diodes Feature Summary

• Low-power voltage regulation capability suitable for compact electronic designs
• Very small ceramic surface-mounted package for space-constrained applications
• High reliability with robust thermal performance under standard operating conditions

Single Zener Diodes Applications

• General regulation functions
• Voltage reference circuits
• Overvoltage protection stages

Single Zener Diodes Procurement Notes

Verify that the specific ordering suffix matches the required packaging configuration before procurement. Confirm the exact part number against the manufacturer's latest product data sheet to ensure compatibility with design specifications. Check for any recent updates to the product status or availability directly through official NXP channels.

Single Zener Diodes Selection Notes

Select this component when a precise ±5% tolerance voltage reference is required in a minimal footprint. Ensure the application current does not exceed the specified limits to maintain stable regulation. Consider the thermal resistance characteristics if the device will operate in enclosed environments or high ambient temperatures.

Single Zener Diodes Part Context

This component belongs to the BZX284 series of voltage regulator diodes, which offers various nominal working voltages from 2.4 V to 75 V. The series includes both ±2% and ±5% tolerance options, providing flexibility for different precision requirements in general-purpose electronic circuits.

Single Zener Diodes Replacement Considerations

Consult the manufacturer's documentation for verified substitute part numbers. Ensure any replacement maintains identical electrical characteristics, package dimensions, and tolerance levels to guarantee circuit functionality.
