BZX784C5V1-TP

Single Zener Diodes Overview

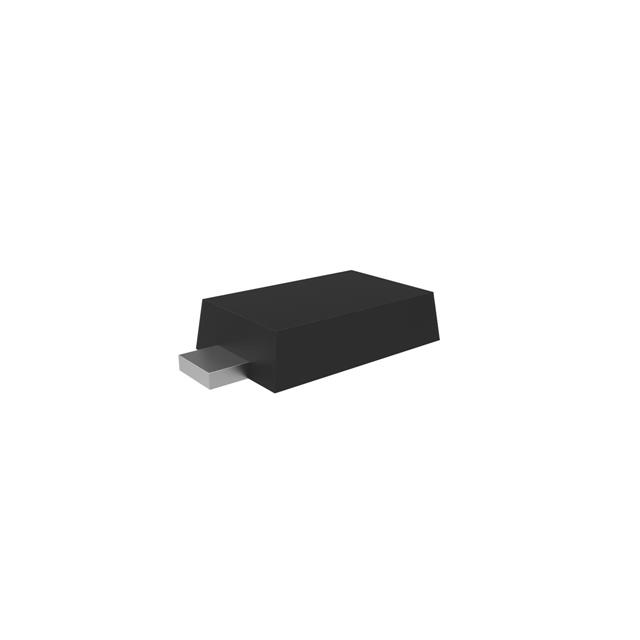

The BZX784C5V1-TP is a single Zener diode manufactured by Micro Commercial Components (MCC). It features a nominal Zener voltage of 5.1 V with a power dissipation rating of 150 mW. The component utilizes an SOD-723 surface-mount package and operates within a temperature range of -55°C to +150°C junction temperature. It holds AEC-Q101 qualification for automotive applications and complies with RoHS standards.

Single Zener Diodes Feature Summary

• AEC-Q101 qualified for automotive reliability requirements
• Compact SOD-723 surface-mount packaging
• Wide operating temperature range up to 150°C

Single Zener Diodes Applications

• Automotive electronic circuits
• Voltage reference stabilization
• Over-voltage protection

Single Zener Diodes Procurement Notes

Verify current availability status as the product may be discontinued or obsolete. Confirm final substitution options with the manufacturer if original stock is unavailable. Ensure all ordering details match the specific suffix requirements for packaging and compliance certifications before purchase.

Single Zener Diodes Selection Notes

Select this component for space-constrained designs requiring a 5.1 V reference in automotive environments. The SOD-723 package offers a small footprint suitable for high-density PCB layouts. Verify thermal management capabilities align with the 150 mW power dissipation limit under expected operating conditions.

Single Zener Diodes Part Context

This part belongs to the MCC Zener diode family designed for general-purpose voltage regulation. The BZX784 series specifically targets compact surface-mount applications. The device provides stable voltage clamping characteristics essential for protecting sensitive downstream components from voltage spikes.

Single Zener Diodes Replacement Considerations

Public sources indicate the BZX784C5V1-TP is no longer manufactured. Substitutes such as the BZX84B5V1 are available from other manufacturers like Good-Ark Semiconductor. Verify pinout compatibility and electrical specifications when selecting an alternative.
