BZX79-B62,113

Single Zener Diodes Overview

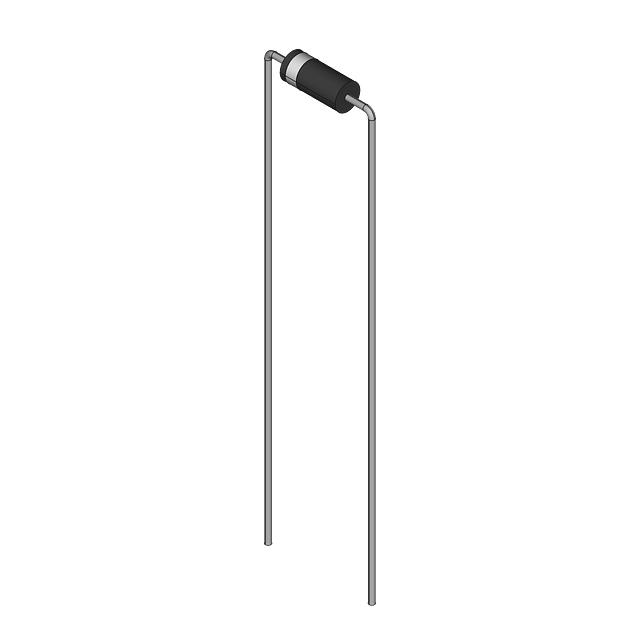

The Nexperia BZX79-B62,113 is a single voltage regulator diode housed in a hermetically sealed SOD-27 (DO-35) through-hole package. It features a nominal Zener voltage of 62 V with a tight tolerance of ±2%. The device supports a maximum power dissipation of 500 mW and operates within an extended temperature range from -65°C to +200°C. Key electrical characteristics include a maximum reverse leakage current of 50 nA and a Zener impedance of 215 Ω at the specified test current.

Single Zener Diodes Feature Summary

• Hermetically sealed leaded glass construction for environmental stability
• High operating junction temperature capability up to 200°C
• Tight voltage tolerance series for precision regulation applications

Single Zener Diodes Applications

• Low voltage stabilizers
• Voltage reference circuits

Single Zener Diodes Procurement Notes

Verify the specific suffix against official Nexperia documentation to confirm exact tolerance and packaging details. Ensure the procurement channel provides valid traceability for the hermetically sealed glass package. Confirm that the requested quantity aligns with standard manufacturing lot sizes to avoid partial reel issues.

Single Zener Diodes Selection Notes

Select this component when high-temperature operation and precise voltage regulation are required in through-hole designs. The 62 V rating suits higher voltage reference needs compared to lower-voltage variants. Consider the 500 mW power limit for thermal management in dense circuit layouts.

Single Zener Diodes Part Context

This part belongs to the BZX79 series of low-power voltage regulator diodes. The series offers a wide range of nominal working voltages from 2.4 V to 75 V in normalized E24 values. The B-series designation indicates the tighter ±2% tolerance variant, distinguishing it from the broader C-series options.

Single Zener Diodes Replacement Considerations

Cross-reference with other manufacturers offering DO-35 packaged Zener diodes with 62 V nominal voltage and ±2% tolerance. Verify that replacement parts meet the same 500 mW power dissipation and 200°C maximum operating temperature specifications.
