BZX84C6V8

Overview

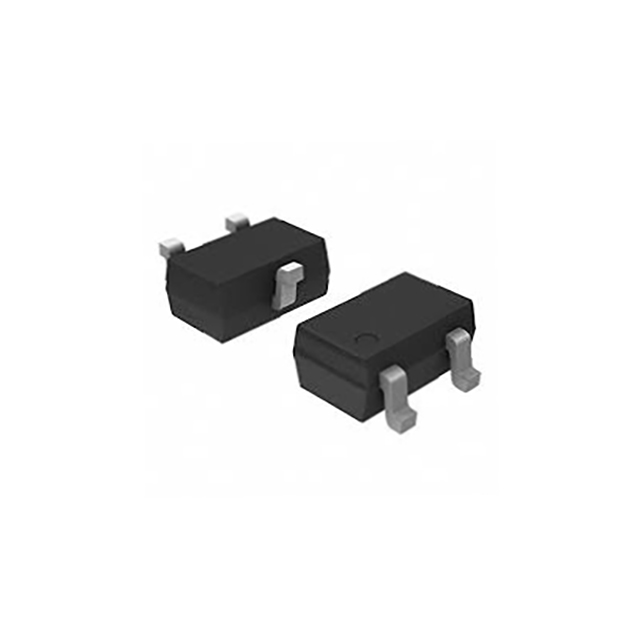

The BZX84C6V8 is a single Zener diode manufactured by Shenzhen Slkormicro Semicon Co., Ltd. It provides a nominal Zener voltage of 6.8 V with a tolerance of 5%. The device operates in the SOT-23-3 surface-mount package and dissipates up to 350 mW of power. Key electrical parameters include a maximum reverse leakage current of 2 µA, a Zener impedance of 15 Ohms, and a test current of 5 mA. It supports a forward voltage of 900 mV and functions within an operating temperature range from -55 °C to +150 °C.

Feature Summary

• Provides stable voltage regulation for reference applications
• Compact SOT-23-3 package suitable for high-density designs
• Low leakage current characteristics

Applications

• General voltage regulation circuits
• Voltage reference sources
• Over-voltage protection stages

Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm RoHS compliance status and specific packaging options such as reel or cut tape availability directly with the supplier. Ensure the part number matches the exact specifications required for your design implementation.

Selection Notes

Select this component when a 6.8 V reference is needed in a small footprint. Verify that the 350 mW power dissipation rating meets thermal requirements. Check that the 5% voltage tolerance aligns with circuit precision needs. Ensure the SOT-23-3 package fits the PCB layout constraints.

Part Context

This component belongs to the BZX84 series of Zener diodes. The series offers various voltage options in the SOT-23 package. It serves as a discrete semiconductor solution for voltage control tasks. The product falls under the broader category of diodes and rectifiers.

Replacement Considerations

Compatible substitutes include other manufacturers' BZX84C6V8 variants. Cross-reference datasheets for pinout compatibility and parameter matching. Verify package dimensions and thermal characteristics before substitution.
