BZX884B6V2L-HG3-08

Single Zener Diodes Overview

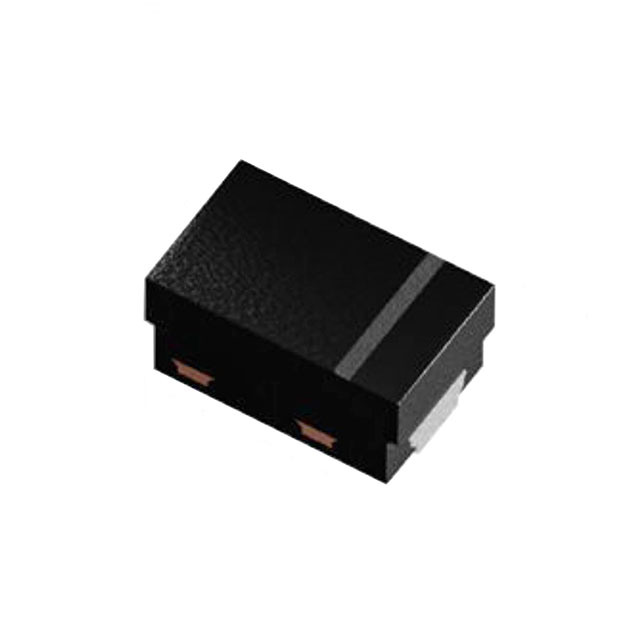

The BZX884B6V2L-HG3-08 is a silicon planar Zener diode from the Vishay BZX884L series, housed in a leadless DFN1006-2A package measuring 1 mm x 0.6 mm x 0.45 mm. It provides a nominal Zener voltage of 6.2 V with a ±2% tolerance and operates at a test current of 5 mA. The device features low leakage current (max 3 µA), dynamic resistance of 10 Ω, and power dissipation up to 300 mW on an FR-4 board. It is AEC-Q101 qualified and suitable for surface-mounted designs.

Single Zener Diodes Feature Summary

• Leadless ultra-small DFN1006-2A plastic package with visible and sidewall plated wettable flanks
• Surge rated capability with high non-repetitive peak reverse power handling
• Low leakage current and low noise characteristics ensuring excellent stability
• Automotive-grade qualification compliant with AEC-Q101 standards

Single Zener Diodes Applications

• General regulation functions
• Voltage reference applications
• Protection circuits requiring surge rating

Single Zener Diodes Procurement Notes

Verify the specific ordering suffix HG3-08 confirms AEC-Q101 automotive qualification status. Ensure the B6V2 designation matches the required 6.2 V nominal voltage and ±2% tolerance specifications. Confirm the DFN1006-2A package dimensions align with the target PCB footprint requirements before finalizing procurement orders.

Single Zener Diodes Selection Notes

Select this component when a compact surface-mount solution with tight voltage tolerance is required. The DFN1006-2A package offers superior power dissipation compared to SOT-23 packages. Verify that the 6.2 V Zener voltage and 5 mA test current conditions meet the circuit design parameters for stable operation within the specified temperature range.

Single Zener Diodes Part Context

This part belongs to the Vishay BZX884L series of small signal Zener diodes. The series utilizes silicon planar technology and is designed for general-purpose voltage regulation. The L-series designation indicates the inclusion of side-wettable flanks for improved solder joint inspection reliability in automated optical inspection processes.

Single Zener Diodes Replacement Considerations

Direct substitutes within the same family include other BZX884L variants with different voltage ratings but identical packaging and qualification. Cross-family replacements must match the DFN1006-2A footprint and AEC-Q101 qualification if automotive compliance is mandatory.
