C0402C-2N00J1Y

Fixed Inductors Overview

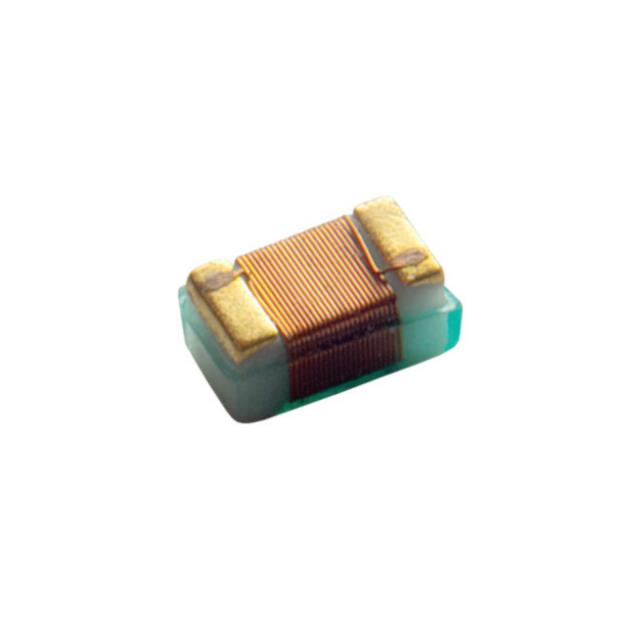

The Delevan C0402C-2N00J1Y is a fixed surface-mount inductor with an inductance of 1.93 nH and a tolerance of ±5%. It features a wirewound construction with a maximum DC resistance of 70 mΩ and a rated current of 1.04 A. The component operates within a temperature range of -40°C to +125°C and utilizes a 0402 (1005 Metric) case size.

Fixed Inductors Feature Summary

• Wirewound construction for stable RF performance
• Compact 0402 surface-mount footprint
• High current handling capability relative to size

Fixed Inductors Applications

• RF circuit impedance matching networks
• High-frequency signal filtering applications
• Broadband amplifier input/output stages

Fixed Inductors Procurement Notes

Verify the specific manufacturer source, as API Delevan assets have undergone corporate restructuring. Confirm RoHS compliance status directly with the supplier, as legacy stock may differ from current production runs. Ensure the package dimensions match the required PCB land pattern precisely.

Fixed Inductors Selection Notes

Select this component when minimal inductance is required for high-frequency operation. The low DC resistance supports efficient power transfer in sensitive RF paths. Verify that the 1.04 A rating exceeds the peak current demands of the target application to prevent saturation or thermal issues.

Fixed Inductors Part Context

This part belongs to the C0402C series of unshielded wirewound chip inductors manufactured by Delevan. These components are designed for general-purpose RF applications where small physical size and precise inductance values are critical for circuit miniaturization and performance stability.

Fixed Inductors Replacement Considerations

Publicly confirmed substitute part numbers for this specific model are not available in the provided documentation. Cross-referencing requires manual verification of electrical parameters and mechanical dimensions against alternative manufacturers' offerings.
