C0603C-220NJ1Y

$9.35

Description：ROHS, SURFACE MOUNT, CAPPED, WIR
Series：C0603
Mfr：Delevan
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f08219b76152 Category: Fixed Inductors Brand: Delevan

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

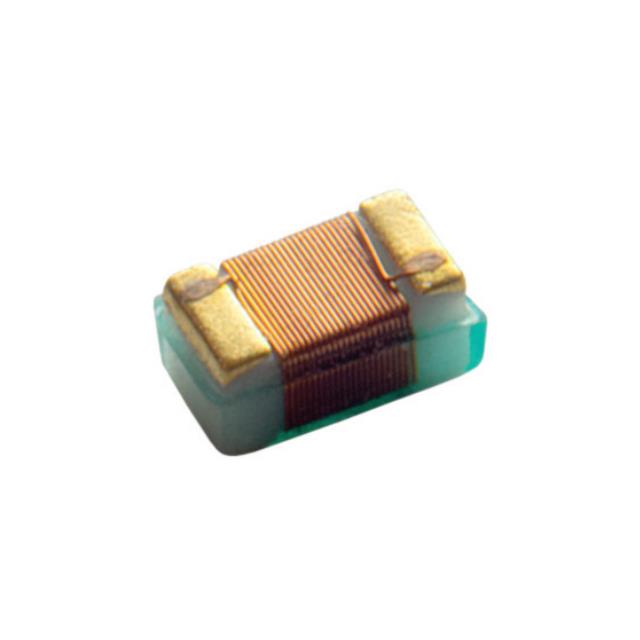

C0603C-220NJ1Y is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Delevan. Its product description is ROHS, SURFACE MOUNT, CAPPED, WIR. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for C0603C-220NJ1Y

Description：ROHS, SURFACE MOUNT, CAPPED, WIR
Series：C0603
Mfr：Delevan
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Wirewound
Material - Core：Ceramic
Inductance：220 nH
Tolerance：±5%
Current Rating (Amps)：200 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：1.7Ohm Max
Q @ Freq：23 @ 150MHz
Frequency - Self Resonant：700MHz
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：150 MHz
Mounting Type：Surface Mount
Package / Case：0603 (1608 Metric)
Supplier Device Package：603
Size / Dimension：0.071" L x 0.047" W (1.80mm x 1.20mm)
Height - Seated (Max)：0.040" (1.02mm)
Features：-

Fixed Inductors datasheet and documents for C0603C-220NJ1Y

C0603C-220NJ1Y

Fixed Inductors Overview

The Delevan C0603C-220NJ1Y is a surface-mount RF inductor with a nominal inductance of 220 nH and a tolerance of ±5%. It utilizes an unshielded wirewound construction on a ceramic core within a 0603 (1608 metric) package. The component supports a maximum DC current of 200 mA and features a maximum DC resistance of 1.7 Ohms. It operates between -40°C and +125°C, with a minimum Q factor of 23.

Fixed Inductors Feature Summary

Unshielded wirewound design for RF applications
Ceramic core construction
Surface mount PCB installation

Fixed Inductors Applications

RF circuits
PCB mounting

Fixed Inductors Procurement Notes

Verify the exact suffix configuration against official manufacturer documentation to confirm functional equivalence. Confirm availability status as supply conditions may vary. Ensure the component meets specific RoHS requirements before integration into final assemblies.

Fixed Inductors Selection Notes

Select this component for designs requiring a 220 nH inductance value in a compact 0603 footprint. Consider the 200 mA current rating and 1.7 Ohm resistance limits when designing power paths. Verify thermal performance within the specified -40°C to +125°C operating range.

Fixed Inductors Part Context

This part belongs to the Delevan C0603 series of chip inductors. These components are designed for surface mount technology and target radio frequency applications. The series offers various inductance values within the standard 0603 package dimensions.
