C10A50Z4

Overview

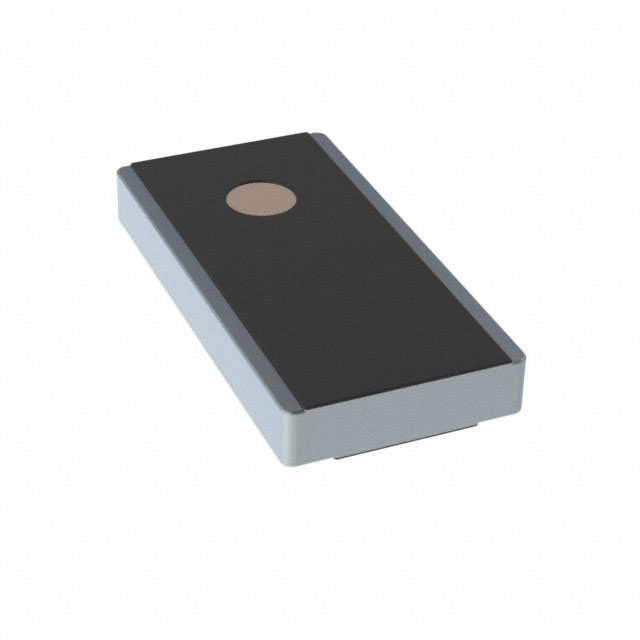

The C10A50Z4 is a surface-mount RF termination resistor manufactured by TTM Technologies. It provides a 50 Ohm impedance with a tolerance of 2% and a power rating of 10 Watts. The component operates from DC to 3.0 GHz, ensuring effective signal absorption in high-frequency circuits. It features an SMD/SMT package measuring 0.2 inches in length, 0.1 inches in width, and 0.025 inches in height. The device supports an operating temperature range from -55°C to +125°C and complies with RoHS standards.

Feature Summary

• Provides stable 50 Ohm impedance for RF circuit termination
• Supports high-power dissipation up to 10 Watts
• Operates effectively across DC to 3.0 GHz frequency range
• Designed for surface-mount assembly on printed circuit boards

Applications

• Cellular communication systems
• DCS network infrastructure
• GSM mobile devices
• PCS wireless applications
• UMTS technology implementations

Procurement Notes

Verify the specific manufacturer part number against official TTM Technologies documentation to ensure compatibility with your design requirements. Confirm that the procurement channel sources genuine components directly from authorized distributors or the manufacturer. Check current datasheets for any recent packaging changes or environmental compliance updates before finalizing orders.

Selection Notes

Select this component when a robust RF termination is required for cellular and wireless applications. Ensure the PCB layout accommodates the specified 2-SMD no-lead-bottom package dimensions. Verify that the thermal management strategy supports the 10 Watt power rating within the intended operating temperature range of -55°C to +125°C.

Part Context

This component belongs to the Xinger series of RF resistors produced by TTM Technologies. These parts are engineered specifically for high-frequency signal termination in wireless communication hardware. The series offers various power ratings and frequency capabilities to suit different cellular and mobile device architectures.

Replacement Considerations

Consult official TTM Technologies substitution guides for verified alternatives. Cross-reference specifications such as impedance, power rating, and frequency range to ensure functional equivalence without compromising circuit performance.
