C16-40.000-8-1015-R

Crystals Overview

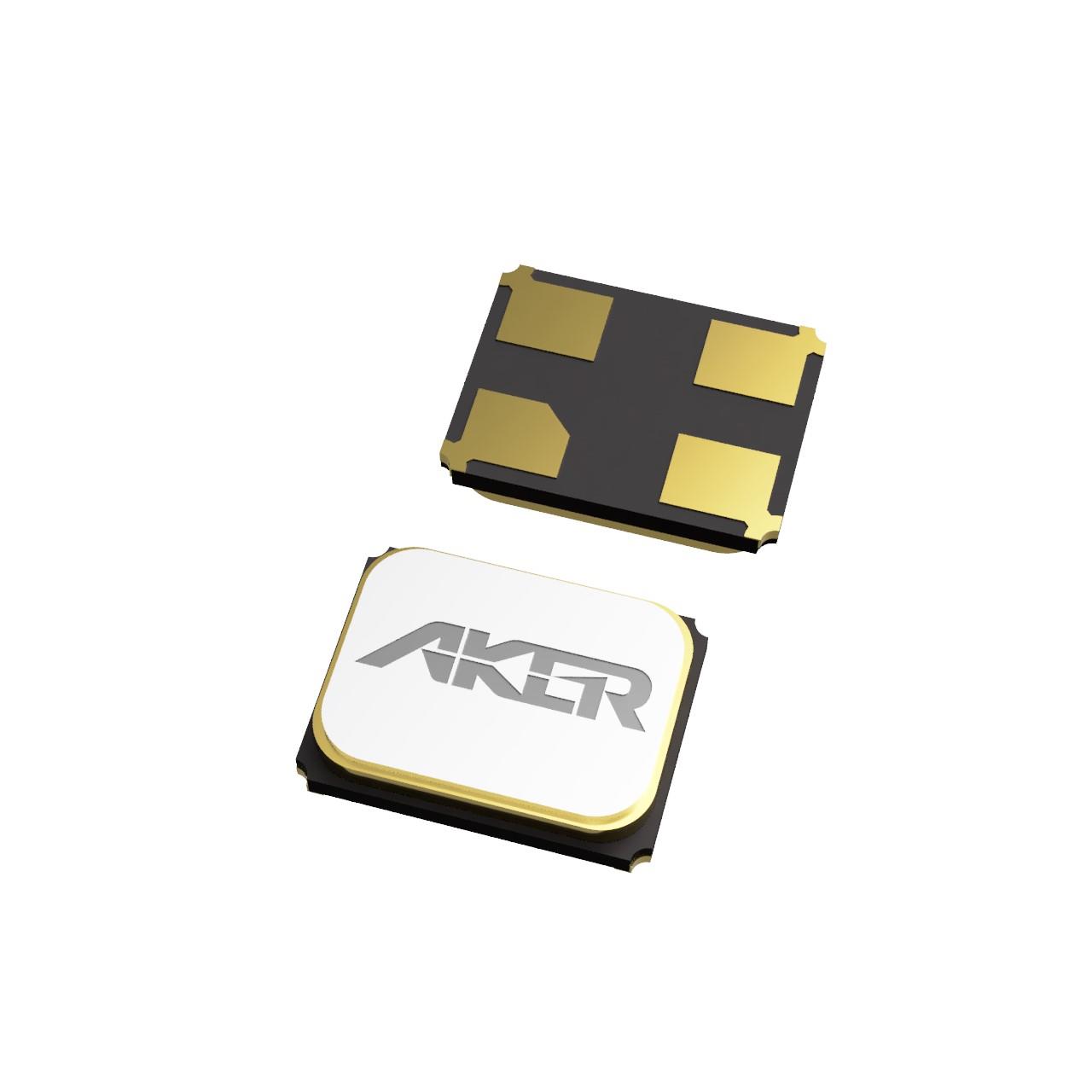

The C16-40.000-8-1015-R is a parallel fundamental quartz crystal manufactured by Aker Technology Corp. It operates at a nominal frequency of 40 MHz with a ±10 ppm tolerance and ±15 ppm stability. The component features an 8 pF load capacitance and a maximum equivalent series resistance (ESR) of 60 Ohms. Designed for surface mount applications, it utilizes a 4-SMD, no lead package configuration. The device supports tape and reel packaging for automated assembly processes.

Crystals Feature Summary

• Fundamental mode parallel resonance operation
• Surface mount 4-pin no lead package design
• Low equivalent series resistance specification

Crystals Applications

• Clock signal generation in digital circuits
• Frequency reference sources for microcontrollers
• Timing components in communication modules

Crystals Procurement Notes

Verify the specific load capacitance requirement matches your circuit design before procurement. Confirm that the operating temperature range aligns with your application environment. Ensure the surface mount footprint dimensions are compatible with your PCB layout constraints. Check for RoHS compliance status if required by your manufacturing standards.

Crystals Selection Notes

Select this component when a 40 MHz fundamental frequency is required with tight initial tolerance. Consider the 8 pF load capacitance compatibility with your oscillator circuit. Evaluate the ESR limits against your driver strength requirements. Choose this package type for high-density surface mount assembly needs.

Crystals Part Context

This part belongs to the C16 series of surface mount crystals from Aker Technology. The series offers various frequencies and package options for general electronic applications. The C16 designation indicates a specific physical form factor within their portfolio. These components are designed for reliable timing performance in consumer and industrial electronics.

Crystals Replacement Considerations

Direct substitutes must match the 40 MHz frequency, 8 pF load capacitance, and 4-SMD package. Verify equivalent electrical parameters including tolerance and stability ratings. Ensure the replacement part supports fundamental mode operation. Check mechanical footprint compatibility for seamless integration.
