C16-96.000-8-1520-X2-R

Crystals Overview

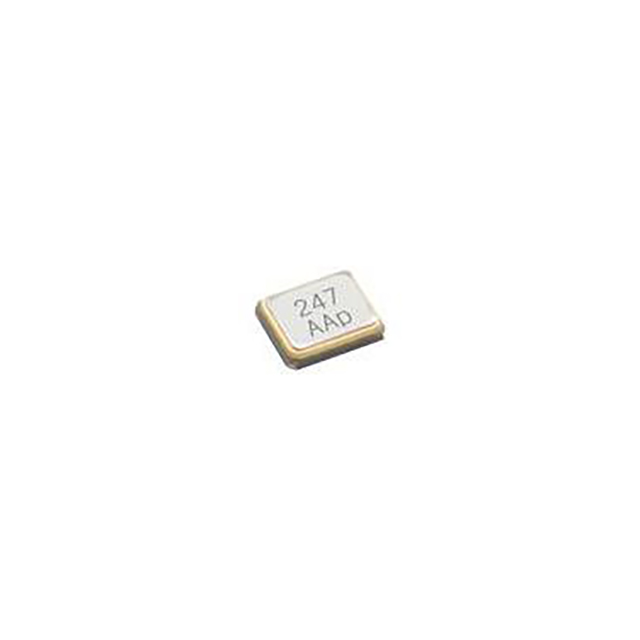

The C16-96.000-8-1520-X2-R is a surface-mount crystal oscillator manufactured by Aker Technology Corp. It operates at a fundamental frequency of 96 MHz with a load capacitance of 8 pF. The component utilizes a 4-SMD, no lead package configuration designed for automated assembly processes. Frequency stability is specified at ±20 ppm, ensuring reliable timing performance in digital circuits. This device serves as a precise clock source for high-speed electronic applications requiring compact form factors and stable oscillation characteristics.

Crystals Feature Summary

• Surface-mount design compatible with standard SMT assembly lines
• Fundamental mode operation providing stable 96 MHz output
• Integrated 8 pF load capacitance matching common circuit requirements

Crystals Applications

• Microcontroller clock generation
• Digital signal processing timing references
• Communication interface synchronization

Crystals Procurement Notes

Verify the specific suffix codes against official manufacturer documentation to confirm exact electrical tolerances and packaging specifications. Ensure compatibility with reflow soldering profiles defined for lead-free components. Cross-reference the part number with authorized distributors to validate authenticity and traceability before procurement.

Crystals Selection Notes

Select this component when a compact SMD crystal is required for 96 MHz applications. Consider the ±20 ppm stability requirement against system timing budgets. Evaluate the 4-SMD footprint constraints against PCB layout limitations. Confirm that the 8 pF load capacitance aligns with the host oscillator circuit design parameters.

Crystals Part Context

This part belongs to the Aker Technology Corp crystal oscillator family, focusing on small form-factor solutions. The C16 series typically targets space-constrained designs where traditional through-hole crystals are unsuitable. It represents a standard offering for general-purpose timing needs in consumer and industrial electronics.

Crystals Replacement Considerations

Direct substitutes must match the 96 MHz frequency, 8 pF load capacitance, and 4-SMD package dimensions. Verify equivalent stability ratings and operating temperature ranges. Check pinout compatibility if alternative packages are considered.
