C1E-24.000-10-1010-R

Crystals Overview

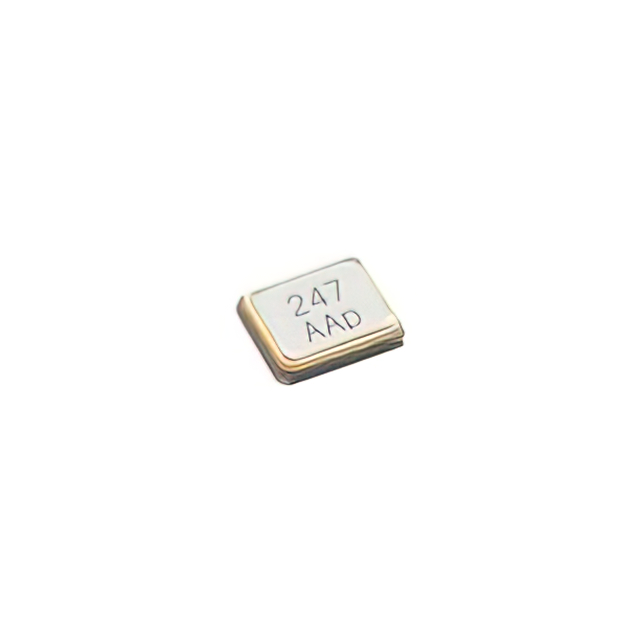

The C1E-24.000-10-1010-R is a surface-mount MHz crystal manufactured by Aker Technology Corp. It operates at a standard frequency of 24 MHz with a frequency stability and tolerance of ±10 ppm. The component features a load capacitance of 10 pF and a series resistance of 100 Ohms. It utilizes a 4-SMD, No Lead package with dimensions of 2.00mm x 1.60mm and a maximum seated height of unspecified value in provided data. The device is RoHS3 compliant and maintains an active product status.

Crystals Feature Summary

• Surface-mount quartz crystal oscillator designed for compact electronic assemblies
• Provides stable 24 MHz timing reference with high frequency accuracy
• Compliant with RoHS3 environmental standards for restricted substances

Crystals Applications

• Microcontroller clock sources
• Communication interface timing
• Digital signal processing circuits

Crystals Procurement Notes

Verify the specific suffix 'R' against the manufacturer's current datasheet to confirm packaging configuration and compliance status. Ensure the operating temperature range aligns with system requirements, as variations exist within the C1E series. Cross-reference the exact part number with authorized distributors to confirm availability and authenticity before procurement.

Crystals Selection Notes

Select this component when a precise 24 MHz frequency is required with tight tolerance specifications. The small SMD footprint suits space-constrained designs. Compare against other C1E variants if different load capacitances or temperature ranges are needed. Ensure the circuit design supports the specified 10 pF load capacitance for optimal frequency accuracy.

Crystals Part Context

This part belongs to the C1E series of surface-mount crystals from Aker Technology USA. Similar parts include C1E-24.000-10-1015-M and C1E-24.000-10-1520-R, which may differ in physical dimensions or temperature ratings. The series offers various configurations for standard clocking applications.

Crystals Replacement Considerations

Direct substitutes within the same series include C1E-24.000-10-1015-M. Verify pin compatibility and electrical parameters before substitution. Other manufacturers offer equivalent 24 MHz SMD crystals but require full parameter validation.
