C1E-32.000-10-1010-A-X-R

Crystals Overview

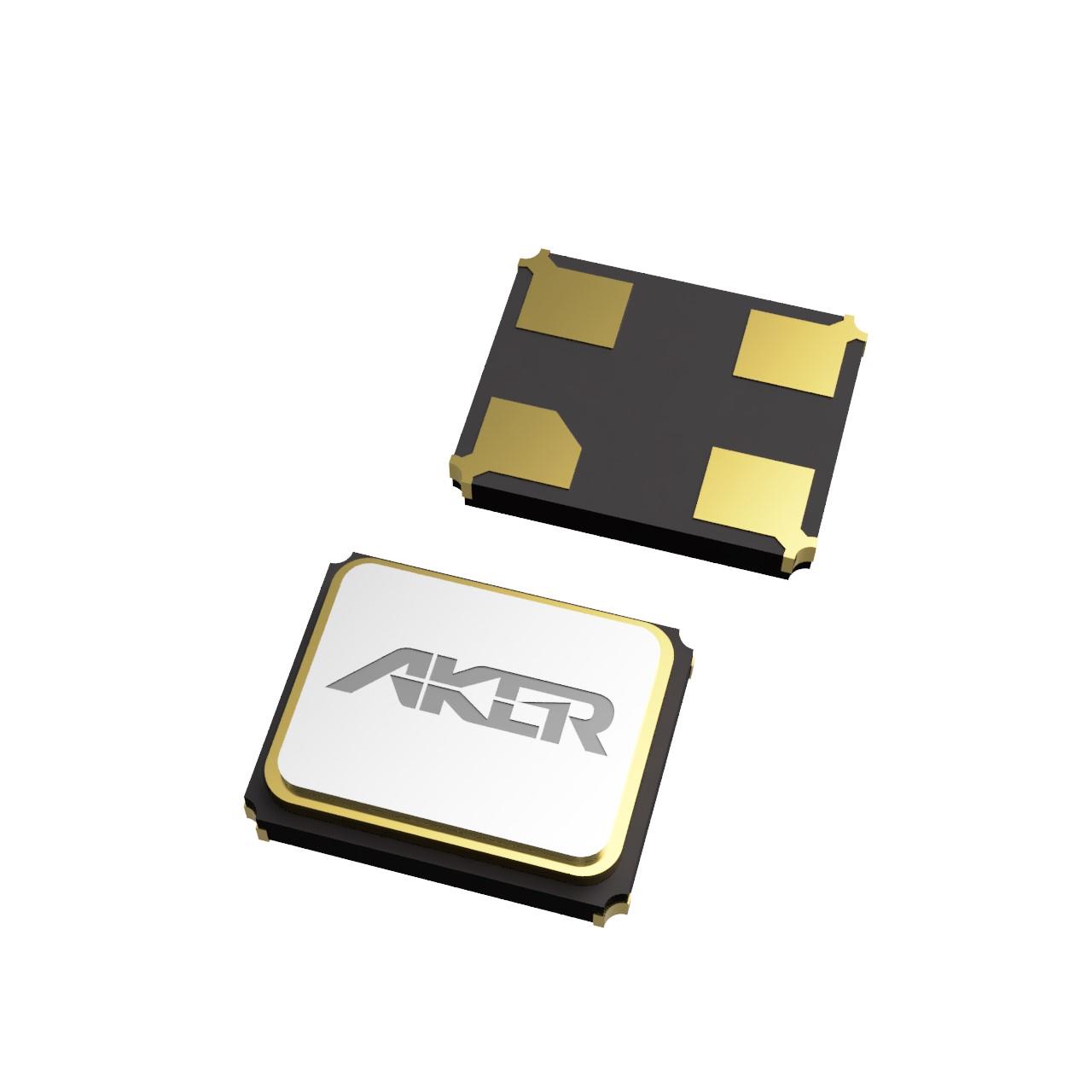

The C1E-32.000-10-1010-A-X-R is a 32 MHz MHz crystal oscillator manufactured by Aker Technology Corp. It features a frequency stability of ±10ppm and a load capacitance of 10pF. The equivalent series resistance (ESR) is specified at 60 Ohms. This component utilizes a 4-SMD, No Lead package configuration. It is designed for automotive grade applications, specifically supporting Ultra-Wideband (UWB) and Bluetooth Low Energy (BLE) systems. The device complies with RoHS standards and is supplied in Tape & Reel packaging.

Crystals Feature Summary

• Automotive-grade reliability for secure UWB and BLE applications
• Compact 4-SMD no-lead surface mount package
• RoHS compliant manufacturing process

Crystals Applications

• Ultra-Wideband (UWB) positioning systems
• Bluetooth Low Energy (BLE) connectivity modules
• Automotive keyless entry and access control

Crystals Procurement Notes

Verify the specific datasheet revision and manufacturer documentation to confirm exact electrical tolerances and thermal characteristics. Ensure that the 4-SMD no-lead footprint matches the target PCB layout requirements. Confirm RoHS compliance status through official certification documents provided by Aker Technology Corp prior to final procurement decisions.

Crystals Selection Notes

Select this component for designs requiring precise 32 MHz timing in automotive environments. The ±10ppm stability suits UWB and BLE synchronization needs. Evaluate the 60 Ohm ESR against the oscillator circuit design. The 10pF load capacitance must align with the host system's capacitive requirements for accurate frequency operation.

Crystals Part Context

This part belongs to the C1E Auto series from Aker Technology Corp, which focuses on automotive-grade frequency control solutions. Similar parts in the series include variants with different frequencies such as 24 MHz or 38.4 MHz, maintaining consistent package and stability profiles for modular automotive electronic designs.

Crystals Replacement Considerations

Direct substitutes within the same series include C1E-24.000-10-1010-A-X-R and C1E-38.400-10-1010-A-X-R, differing primarily in operating frequency while retaining identical package and stability specifications.
