C1E-32.000-8-1550-A-X1-R

Crystals Overview

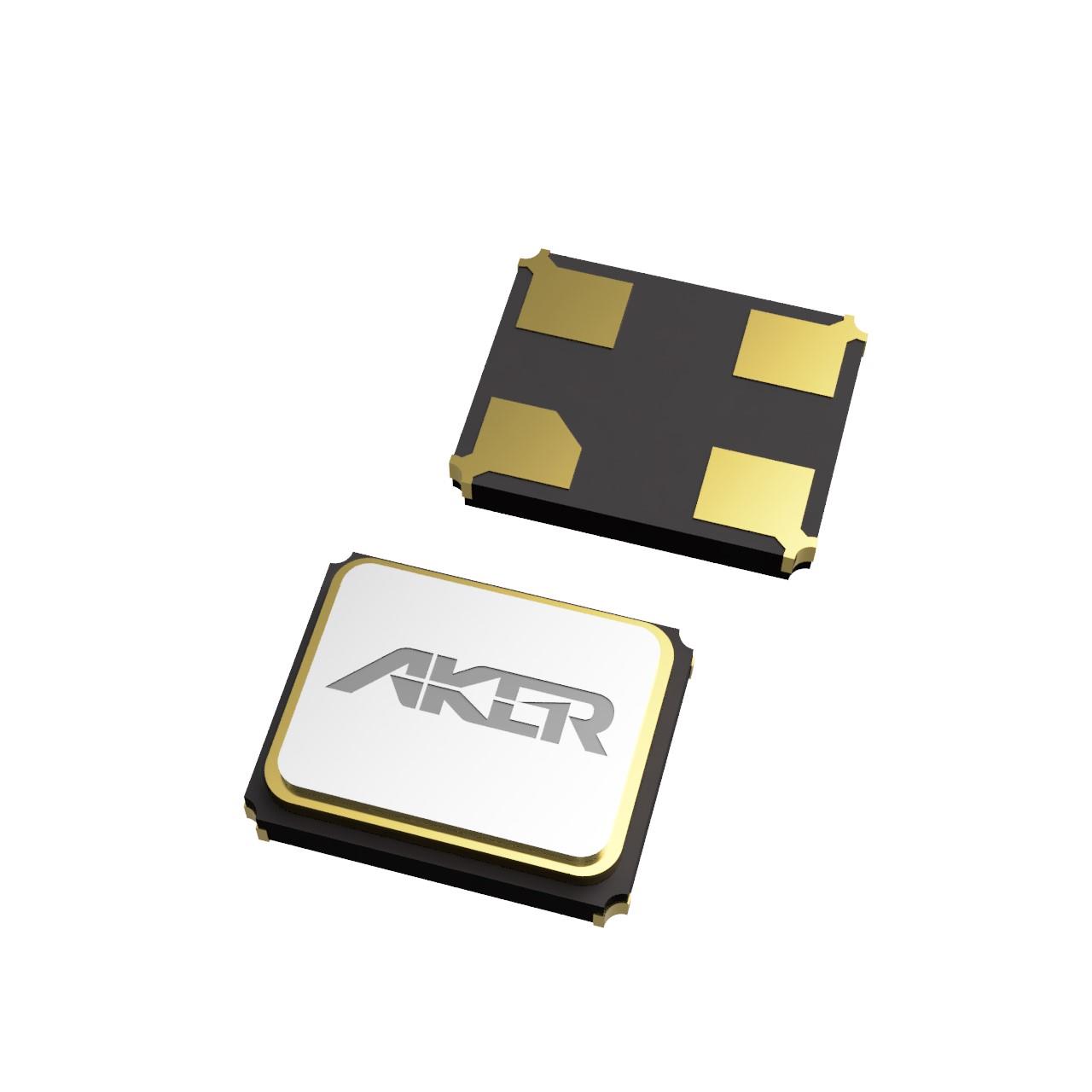

The C1E-32.000-8-1550-A-X1-R is a surface-mount MHz crystal oscillator manufactured by Aker Technology Corp. It operates at a nominal frequency of 32 MHz with a load capacitance of 8 pF and an equivalent series resistance of 60 Ohms. The component features a 4-SMD, no-lead package measuring 2.00mm x 1.60mm with a maximum seated height of 0.50mm. It supports a frequency stability of ±50ppm and is available in cut tape packaging.

Crystals Feature Summary

• Surface-mount design for automated assembly
• Compact 4-pin SMD footprint
• RoHS compliant construction

Crystals Applications

• General electronic timing circuits
• Embedded system clock sources
• Consumer electronics modules

Crystals Procurement Notes

Verify the specific load capacitance and ESR requirements against the target circuit design to ensure oscillation stability. Confirm that the 4-SMD package dimensions align with the PCB land pattern specifications. Ensure the selected supplier provides authentic components from authorized channels to guarantee performance consistency and supply chain reliability.

Crystals Selection Notes

Select this component when a compact, low-profile crystal is required for space-constrained designs. The 8 pF load capacitance suits applications with specific internal or external capacitive loads. Consider the ±50ppm stability limit for standard timing accuracy needs rather than high-precision metrology applications.

Crystals Part Context

This part belongs to the C1E series of MHz crystals from Aker Technology Corp. It is designed as a direct replacement for other 32 MHz surface-mount crystals in similar form factors. The series offers various load capacitance options to match different oscillator circuit configurations.

Crystals Replacement Considerations

Compatible substitutes include other 32 MHz 4-SMD crystals with matching 8 pF load capacitance and similar physical dimensions. Verify pin compatibility and electrical parameters before substitution.
