C1E-96.000-9.9-1216-X2-R

Crystals Overview

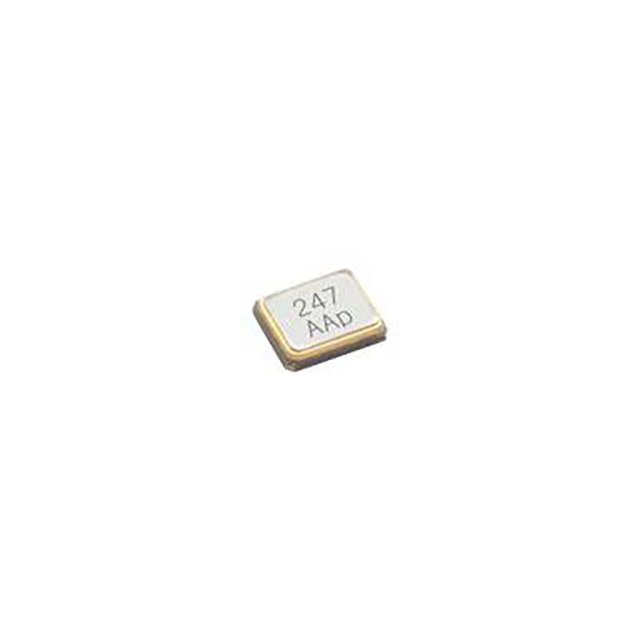

The C1E-96.000-9.9-1216-X2-R is a surface-mount quartz crystal manufactured by Aker Technology Corp. It operates at a fundamental frequency of 96 MHz with a load capacitance of 9.9 pF. The component exhibits a frequency tolerance of ±12 ppm and a frequency stability of ±16 ppm. It utilizes a 4-SMD, no-lead package configuration and features an equivalent series resistance of 60 Ohms. This device is designed for precise timing applications requiring stable oscillation in compact electronic systems.

Crystals Feature Summary

• Provides precise 96 MHz timing reference via quartz resonance
• Utilizes compact 4-SMD surface-mount packaging for automated assembly
• Ensures frequency stability within specified tolerance limits

Crystals Applications

• High-speed data handling systems requiring accurate clock synchronization
• Edge AI devices needing stable computing environments
• General purpose digital circuits requiring 96 MHz oscillator input

Crystals Procurement Notes

Verify the specific ordering suffix against official Aker Technology documentation to ensure correct load capacitance and tolerance specifications. Confirm that the 4-SMD package dimensions align with your PCB footprint requirements. Check for RoHS3 compliance status if required by your manufacturing standards. Ensure the supplier provides valid traceability documents matching the part number exactly.

Crystals Selection Notes

Select this component when a 96 MHz fundamental frequency is required with a 9.9 pF load capacitance. Consider the ±12 ppm tolerance for applications demanding moderate frequency accuracy. Evaluate the 60 Ohm ESR against your oscillator circuit drive level constraints. Compare the 4-SMD form factor against available board space limitations relative to other crystal packages.

Crystals Part Context

This crystal belongs to the C1E series from Aker Technology, which focuses on quartz-based frequency control products. The series supports various frequencies and load capacitances for diverse electronic applications. Aker Technology emphasizes ISO9001:2015 and IATF 16949:2016 quality standards in their manufacturing processes, ensuring reliability for global electronics markets.

Crystals Replacement Considerations

No public confirmed substitute part numbers are identified in the provided source material. Cross-referencing requires identical electrical parameters including 96 MHz frequency, 9.9 pF load capacitance, and compatible package dimensions.
