C201367A-152NHF

Overview

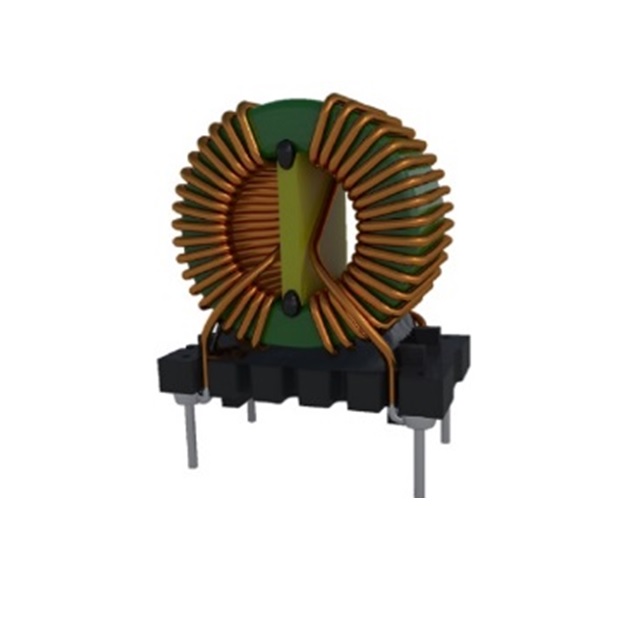

The C201367A-152NHF is a dual common mode choke manufactured by ITG Electronics, Inc. It features an inductance of 1.5 mH measured at 10 kHz with a tolerance of 30%. The component supports a maximum current rating of 10 A and exhibits a direct current resistance (DCR) of 11 mOhm. Designed for through-hole mounting, this two-line filter belongs to the C201367A series and is RoHS compliant.

Feature Summary

• Dual-line configuration for effective common mode noise suppression
• Through-hole construction for secure board integration
• RoHS compliant manufacturing standard

Applications

• Power line filtering
• Electromagnetic interference suppression in electronic circuits

Procurement Notes

Verify the specific part number C201367A-152NHF against official ITG Electronics documentation to confirm electrical parameters such as 1.5 mH inductance and 10 A current rating. Ensure compatibility with through-hole assembly processes and validate RoHS compliance requirements for your specific application environment before procurement.

Selection Notes

Select this component when designing circuits requiring common mode noise reduction for power lines. The 10 A current capacity and low DCR make it suitable for applications demanding efficient signal integrity without significant resistive losses. Confirm that the physical dimensions and pinout align with the target PCB layout constraints.

Part Context

This component is part of the C201367A series from ITG Electronics, which includes various inductance values such as 5.0 mH variants. The series is characterized by its use in power line filtering applications, offering consistent performance across different inductance options within the same package style.

Replacement Considerations

Consult official manufacturer substitution lists for verified equivalents. Generic cross-references may not match the specific 1.5 mH inductance or 10 A current rating required for proper circuit operation.
