Product Detailed Parameters
- Description：CMC 1.5MH 9.5A 2LN THROUGH HOLE
- Series：C201368A
- Mfr：ITG Electronics, Inc.
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：9.5A
- DC Resistance (DCR) (Max)：12mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.201" L x 0.787" W (30.50mm x 20.00mm)
- Height (Max)：1.378" (35.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：1.5 mH @ 10 kHz
- Impedance @ Frequency：-
Download product information
Overview

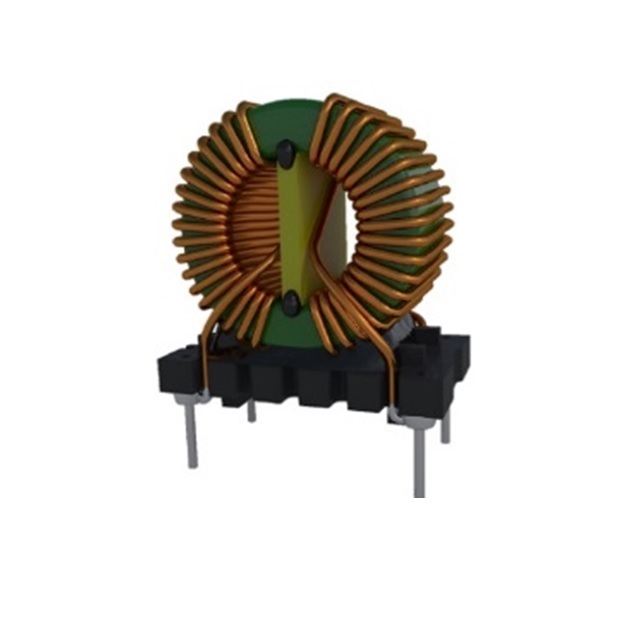

The C201368A-152NHF is a dual common mode choke manufactured by ITG Electronics, Inc., designed for through-hole mounting. It features an inductance of 1.5 mH measured at 10 kHz and supports a maximum current rating of 9.5 A. The component has a maximum DC resistance (DCR) of 12 mOhm and operates within a temperature range of -40°C to +125°C. It is rated for 250 V AC and provides 1.5 kV isolation. This two-line filter complies with RoHS standards.
Feature Summary
- Dual-line configuration for effective common mode noise suppression
- High current handling capability suitable for power line filtering
- Through-hole construction for robust mechanical attachment
- Wide operating temperature range for diverse environmental conditions
Applications
- Power supply input filtering
- EMI suppression in electronic equipment
- Signal integrity protection in data lines
Procurement Notes
Verify the specific part number C201368A-152NHF against official ITG Electronics documentation to confirm electrical parameters such as 1.5 mH inductance and 9.5 A current rating. Ensure the through-hole package type matches the target PCB layout requirements. Confirm RoHS compliance status if required by regulatory standards for the end product.
Selection Notes
Select this component when designing circuits requiring common mode noise reduction on dual lines with high current demands. The 1.5 mH inductance at 10 kHz offers specific attenuation characteristics. Consider the 12 mOhm DCR for power loss calculations and the 250 V AC rating for voltage compatibility. The through-hole format dictates the assembly method and board space allocation.
Part Context
This component belongs to the C201368A series of common mode chokes from ITG Electronics, Inc. The series includes variants with different inductance values, such as the C201368A-222NHF and C201368A-332NHF, which offer varying inductance and current ratings while maintaining similar form factors and application profiles for EMI filtering tasks.
Replacement Considerations
Potential substitutes include other ITG Electronics C201368A series components like the C201368A-222NHF or C201368A-332NHF, provided their inductance and current ratings align with circuit requirements. Verify pinout compatibility and physical dimensions before substitution.
