Product Detailed Parameters

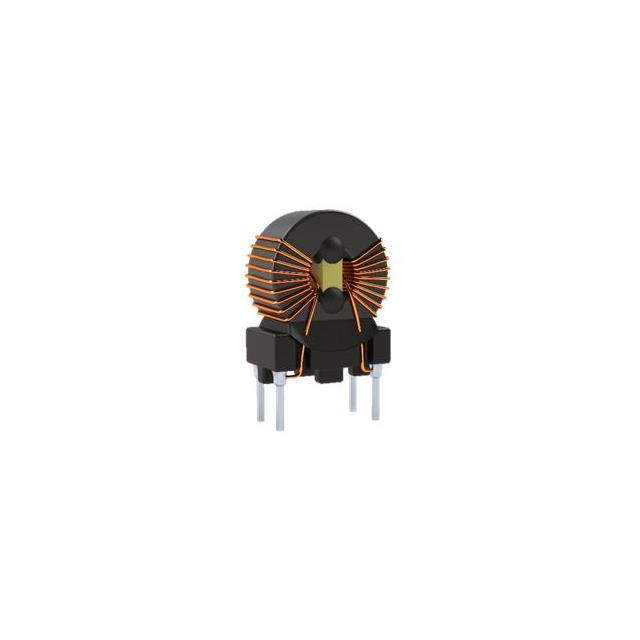

- Description：CMC 1.6MH 2A 2LN TH
- Series：C201371A
- Mfr：ITG Electronics, Inc.
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：90mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.551" L x 0.295" W (14.00mm x 7.50mm)
- Height (Max)：0.630" (16.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：1.6 mH @ 10 kHz
- Impedance @ Frequency：-
Download product information
Overview
The C201371A-162U is a two-line common mode choke manufactured by ITG Electronics, Inc. It features an inductance of 1.6 mH measured at 10 kHz with a tolerance of +50%/-30%. The component supports a maximum current rating of 2.0 A and has a DC resistance (DCR) of 90 mOhm. Designed for through-hole mounting, it utilizes a vertical package with four PC pins.
Feature Summary
- Utilizes nanocrystalline core technology for effective common mode noise suppression
- Designed for through-hole insertion into printed circuit boards
- Constructed with a vertical pin configuration for compact assembly
Applications
- Switch mode power supply input filtering
- Signal line noise suppression
- EMI reduction in electronic circuits
Procurement Notes
Verify the specific manufacturer part number C201371A-162U against official ITG Electronics documentation to confirm electrical parameters. Ensure compatibility with through-hole mounting requirements and verify that the 2.0 A current rating meets the application's thermal and load specifications before procurement.
Selection Notes
Select this component when a 1.6 mH inductance value is required for common mode interference mitigation. Consider the 90 mOhm DC resistance impact on voltage drop and the 2.0 A current limit relative to the operating environment. Verify physical dimensions fit the available PCB space for the four-pin vertical package.
Part Context
This component belongs to the C201371A series of nanocrystalline common mode chokes from ITG Electronics. The series offers various inductance values tailored for different noise suppression needs while maintaining consistent through-hole mounting characteristics and robust construction suitable for industrial applications.
Replacement Considerations
Consult official ITG Electronics substitution guides for verified alternatives within the C201371A series or equivalent nanocrystalline chokes. Ensure any substitute matches the 1.6 mH inductance, 2.0 A current rating, and 90 mOhm DCR specifications.
