Product Detailed Parameters
- Description：CMC 8MH 1.8A 2LN TH
- Series：C201388A
- Mfr：ITG Electronics, Inc.
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.8A
- DC Resistance (DCR) (Max)：110mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.650" L x 0.394" W (16.50mm x 10.00mm)
- Height (Max)：0.787" (20.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：8 mH @ 10 kHz
- Impedance @ Frequency：-
Download product information
Overview

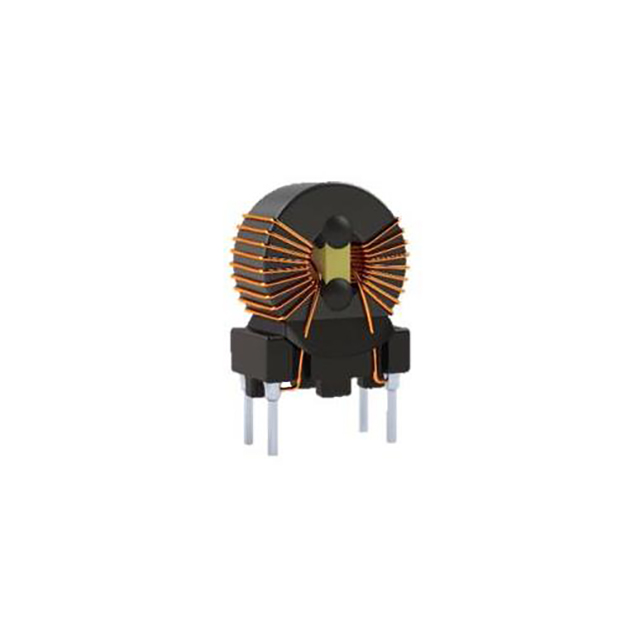

The C201388A-802 is a two-line common mode choke manufactured by ITG Electronics, Inc. designed for through-hole mounting. It provides an inductance of 8 mH at a test frequency of 10 kHz. The component supports a maximum current rating of 1.8 A and features a DC resistance (DCR) of 110 mOhm. This magnetic filter is part of the company's EMI filter portfolio.
Feature Summary
- Two-line configuration for differential signal filtering
- Through-hole mounting technology for PCB integration
- High inductance value for effective noise suppression
Applications
- EMI filtering in electronic circuits
- Power line noise reduction
- Signal integrity protection in data lines
Procurement Notes
Verify the exact inductance tolerance and saturation current characteristics against specific application requirements before procurement. Confirm that the through-hole footprint dimensions match the target PCB layout. Ensure the 1.8 A current rating meets the operational load conditions to prevent performance degradation or thermal issues during continuous use.
Selection Notes
Select this component when a high inductance value of 8 mH is required for common mode noise attenuation in low-current applications up to 1.8 A. The through-hole package is suitable for prototyping or environments requiring robust mechanical fixation. Compare DCR specifications with other models if power loss constraints are critical to the system design.
Part Context
ITG Electronics, Inc. designs and manufactures high-performance magnetic components and EMI filters. The C201388A-802 belongs to their range of common mode chokes, which are engineered to suppress electromagnetic interference in various electronic systems. The manufacturer utilizes experienced engineering teams to develop these magnetic modules for diverse industrial and commercial applications.
Replacement Considerations
Publicly confirmed substitute part numbers for the C201388A-802 are not available in the provided documentation. Users should consult ITG Electronics directly for equivalent recommendations or cross-reference similar 8 mH, 1.8 A through-hole common mode chokes from other manufacturers based on pinout and electrical compatibility.
