Product Detailed Parameters
- Description：DIP CMC 10mH +50%/-30% 85mOhm 2A
- Series：C201517BQ-103
- Mfr：ITG Electronics, Inc.
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：85mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：300V
- Operating Temperature：-55°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.709" L x 0.551" W (18.00mm x 14.00mm)
- Height (Max)：0.866" (22.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：10 mH @ 10 kHz
- Impedance @ Frequency：-
Download product information
Overview

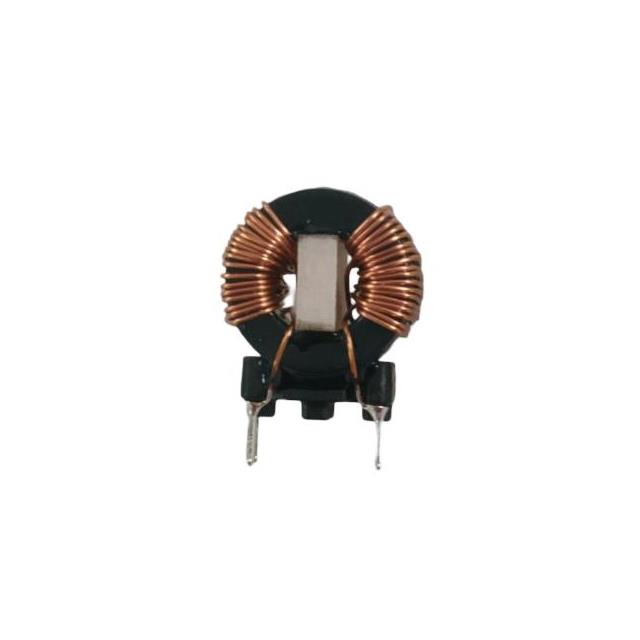

The C201517BQ-103 is a vertical common mode choke manufactured by ITG Electronics, Inc., designed for through-hole mounting. It features two lines with an inductance of 10 mH at 10 kHz and a tolerance of +50%/-30%. The component supports a current rating of 2 A and has a DC resistance (DCR) of 85 mOhm. It operates within a temperature range of -55°C to 125°C.
Feature Summary
- Vertical DIP package configuration for through-hole assembly
- Dual-line common mode filtering capability
- High thermal stability across extended operating temperatures
Applications
- EMI suppression in power supply circuits
- Signal line noise filtering in electronic equipment
- Common mode interference reduction in data transmission lines
Procurement Notes
Verify the manufacturer part number C201517BQ-103 against official ITG Electronics documentation to ensure authenticity. Confirm that the specified inductance, current rating, and physical dimensions match your design requirements before procurement. Check for any specific handling or storage instructions provided in the datasheet.
Selection Notes
Select this component when a through-hole common mode choke with 10 mH inductance and 2 A current capacity is required. Ensure the PCB layout accommodates the vertical DIP form factor and the specified terminal spacing. Consider the 85 mOhm DCR impact on circuit efficiency during selection.
Part Context
ITG Electronics, Inc. specializes in magnetic components and EMI filters. The C201517BQ series represents their vertical common mode chokes, offering reliable noise suppression for various electronic applications. This specific model is part of their standard lineup for general-purpose filtering needs.
Replacement Considerations
Consult ITG Electronics official documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' components without verifying electrical parameters and physical dimensions.
