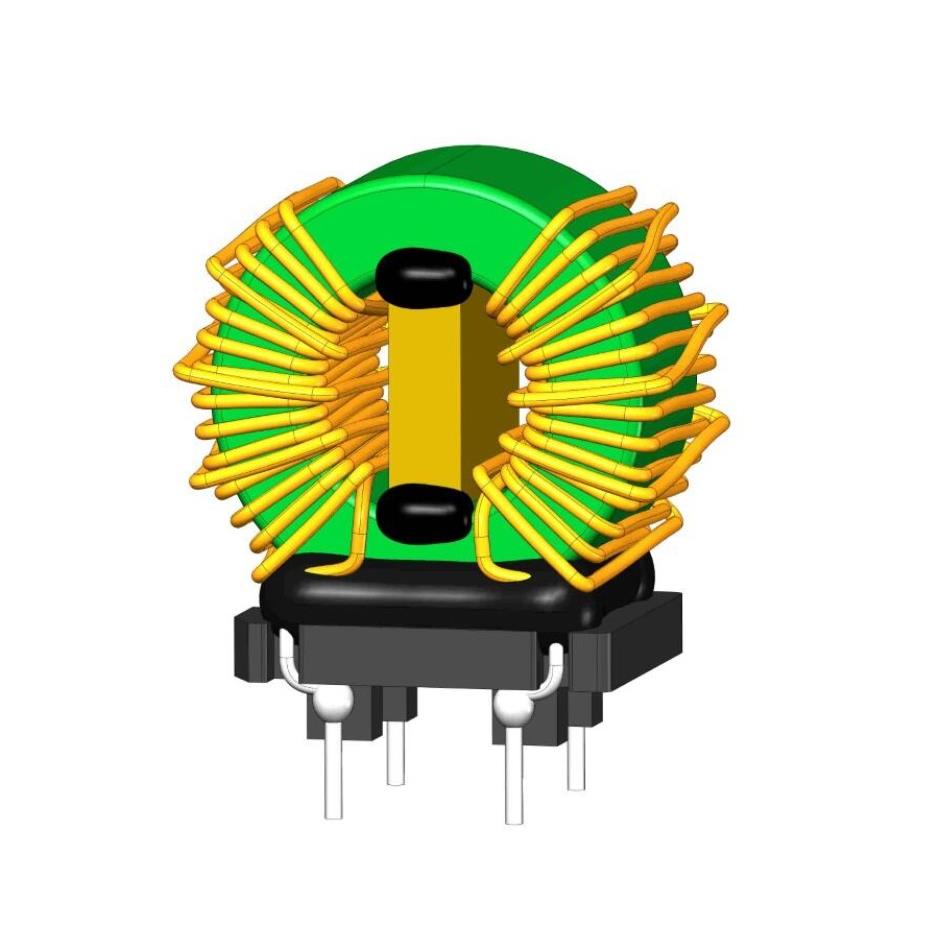

C201540A-102NHF

$4.68

Description：CMC 1.0MH 30% 13.0M 6.0A MAX.
Series：C201540A
Mfr：ITG Electronics, Inc.
Package：Bulk

SKU:efdd29dfce8d Category: Common Mode Chokes Brand: ITG Electronics, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1.0MH 30% 13.0M 6.0A MAX.
Series：C201540A
Mfr：ITG Electronics, Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：6A
DC Resistance (DCR) (Max)：13mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.984" L x 0.669" W (25.00mm x 17.00mm)
Height (Max)：1.043" (26.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：1 mH @ 10 kHz
Impedance @ Frequency：-

Download product information

C201540A-102NHF

Overview

The C201540A-102NHF is a through-hole common mode choke manufactured by ITG Electronics, Inc. It features an inductance of 1 mH at 10 kHz with a tolerance of 30%. The component has a maximum DC resistance (DCR) of 13 mOhm and supports a maximum current rating of 6 A. Designed for two-line applications, it utilizes a DIP package suitable for standard PCB mounting.

Feature Summary

Provides effective common mode noise suppression for two-line circuits
Utilizes a through-hole DIP package for reliable board integration
Engineered to maintain performance under specified thermal conditions

Applications

Power supply input filtering
EMI suppression in electronic equipment
Signal line protection against common mode interference

Procurement Notes

Verify the specific datasheet version for the C201540A-102NHF to confirm RoHS compliance status and moisture sensitivity level details. Ensure that the 6 A current rating aligns with the thermal management requirements of the final assembly. Cross-reference the 13 mOhm DCR specification with circuit loss calculations to validate compatibility with system efficiency targets before procurement.

Selection Notes

Select this component when a 1 mH inductance value is required for common mode noise reduction in low-frequency applications. The 6 A current capacity makes it suitable for higher power lines where lower impedance chokes might saturate. The through-hole format is preferred for applications requiring robust mechanical stability or higher lead strength compared to surface mount alternatives.

Part Context

This part belongs to the C201540A series from ITG Electronics, which specializes in magnetic components and EMI filters. The series offers various inductance values tailored for different filtering needs. ITG Electronics designs these components for high-performance applications, leveraging engineering expertise to produce reliable magnetic modules and filters for industrial and commercial use.
