Product Detailed Parameters
- Description：CMC 0.2mH 30% 3.5mOhm 12.0A Max.
- Series：C201540A
- Mfr：ITG Electronics, Inc.
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：12A
- DC Resistance (DCR) (Max)：3.5mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.945" L x 0.630" W (24.00mm x 16.00mm)
- Height (Max)：0.945" (24.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：200 µH @ 10 kHz
- Impedance @ Frequency：-
Download product information
Overview

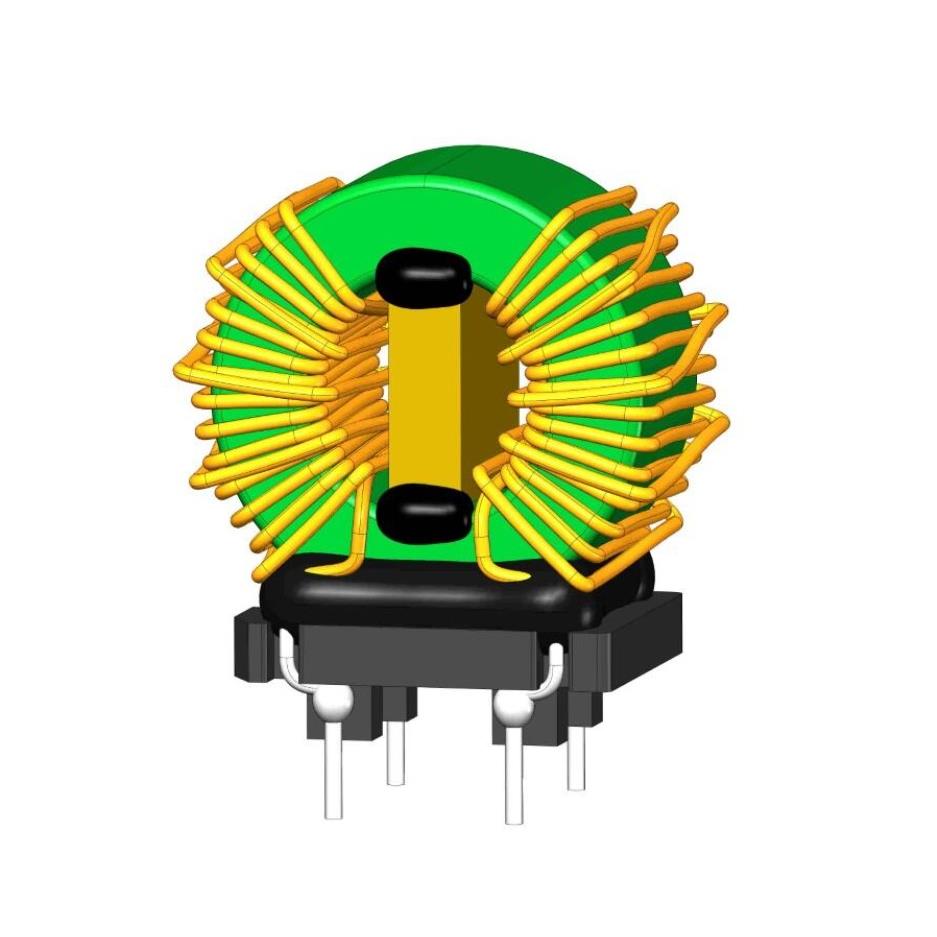

The C201540A-201NHF is a two-line common mode choke manufactured by ITG Electronics, Inc. It features a through-hole mounting style and operates within a temperature range of -40°C to +125°C. The component exhibits an inductance of 200 µH at 10 kHz with a tolerance of 30%. It supports a maximum current rating of 12A and has a maximum DC resistance (DCR) of 3.5 mOhm. The device complies with RoHS3 standards and holds a Moisture Sensitivity Level (MSL) of 1.
Feature Summary
- Provides common mode noise suppression for dual-line circuits
- Designed for through-hole PCB integration
- Operates reliably across extended industrial temperature ranges
Applications
- Power supply input filtering
- Data line noise reduction
- Electromagnetic interference suppression in electronic assemblies
Procurement Notes
Verify the complete part number including suffixes against official manufacturer documentation to ensure correct specifications. Confirm RoHS3 compliance status and moisture sensitivity level requirements match your assembly process. Cross-reference datasheet parameters such as inductance tolerance and current ratings with system design constraints before ordering.
Selection Notes
Select this component based on its specific inductance value and current handling capabilities required for the target application. Ensure the through-hole package fits the available board space and manufacturing equipment. Consider the operating temperature range and DC resistance limits when evaluating thermal performance and efficiency in the final circuit design.
Part Context
This component belongs to the C201540A series of common mode chokes from ITG Electronics, Inc. The series offers various inductance values tailored for different noise suppression needs while maintaining consistent physical dimensions and mounting styles. These components are designed for robust performance in demanding electronic environments.
Replacement Considerations
Consult official substitution guides or manufacturer cross-reference lists for verified alternatives. Ensure any replacement matches the original inductance, current rating, DCR, and physical footprint to maintain circuit integrity.
