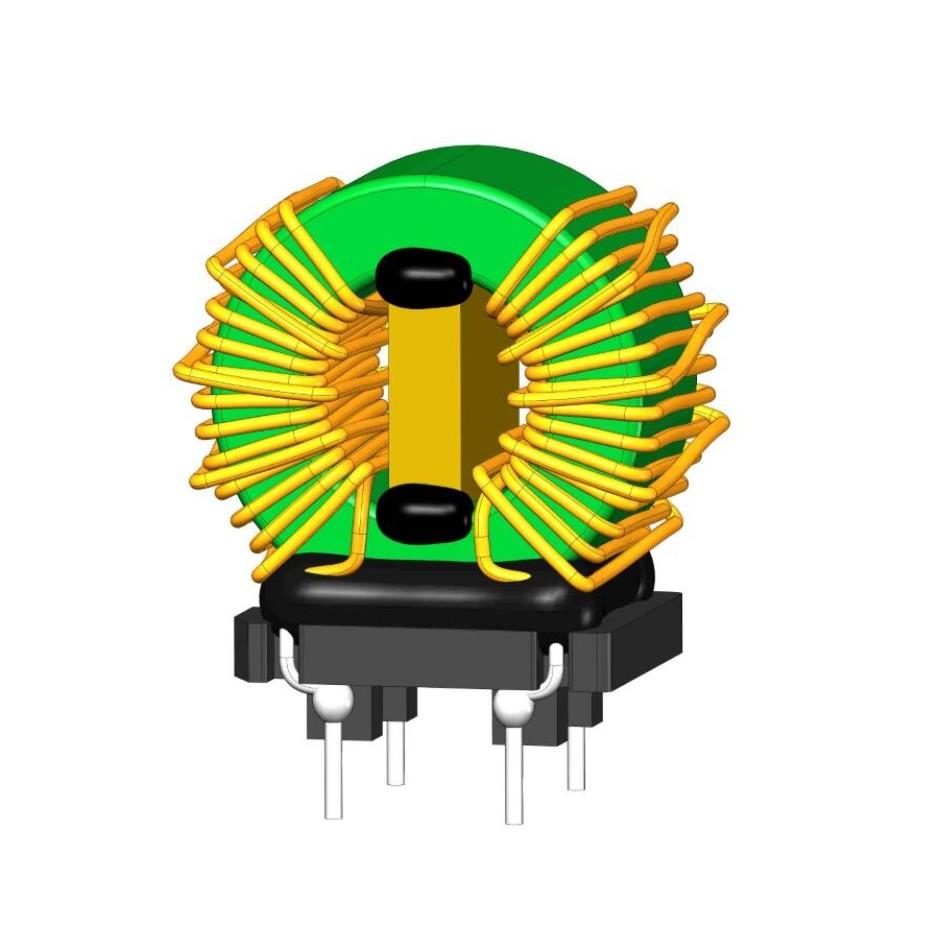

C201540A-203NHF

$4.68

Description：CMC 20MH 1.5A 2LN THROUGH HOLE
Series：C201540A
Mfr：ITG Electronics, Inc.
Package：Bulk

SKU:c309fdfcf404 Category: Common Mode Chokes Brand: ITG Electronics, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 20MH 1.5A 2LN THROUGH HOLE
Series：C201540A
Mfr：ITG Electronics, Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.5A
DC Resistance (DCR) (Max)：270mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.906" L x 0.543" W (23.00mm x 13.80mm)
Height (Max)：1.004" (25.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：20 mH @ 10 kHz
Impedance @ Frequency：-

Download product information

C201540A-203NHF

Overview

The C201540A-203NHF is a common mode choke manufactured by ITG Electronics, Inc. It features an inductance of 20 mH measured at 10 kHz with a tolerance of ±30%. The component supports a maximum current rating of 1.5 A and exhibits a DC resistance (DCR) of 270 mOhm. Designed for through-hole mounting, it operates within a temperature range of -40°C to +125°C and is rated for 250VAC.

Feature Summary

Dual-line common mode noise filtering capability
Through-hole mounting construction
RoHS and HF compliant materials

Applications

Power supply AC input filtering
Lighting application noise suppression

Procurement Notes

Verify the specific suffix NHF against official ITG Electronics documentation to confirm compliance requirements and packaging details. Ensure the 1.5A current rating and 270mOhm DCR align with circuit design constraints before procurement.

Selection Notes

Select this component when 20mH inductance at 10kHz is required for common mode noise reduction. Verify that the 1.5A current capacity meets load requirements and that through-hole mounting is compatible with the PCB layout.

Part Context

This part belongs to the C201540A series from ITG Electronics, which includes various inductance values such as 10mH and 200µH variants. The series shares common characteristics including high dielectric strength and UL 94 V-0 flammability ratings.

Replacement Considerations

Consult official ITG Electronics substitution guides for verified equivalents. Generic replacements must match the 20mH inductance, 1.5A current rating, and through-hole package dimensions.
