Product Detailed Parameters

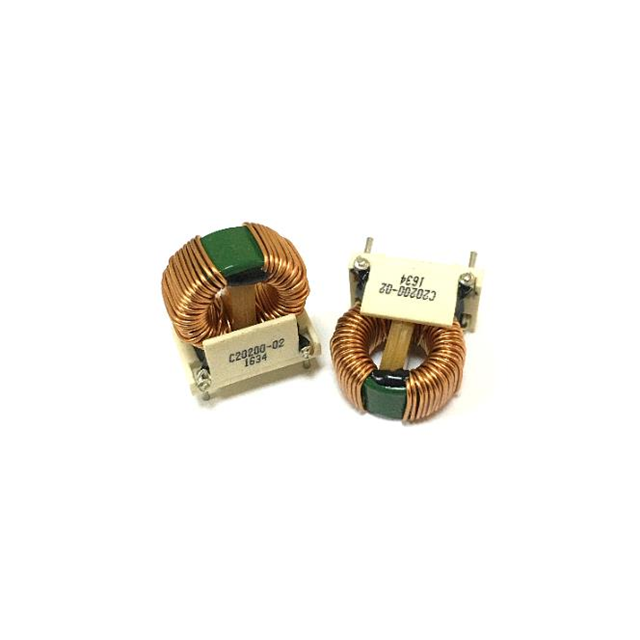

- Description：CMC 1.2MH 16A 2LN THROUGH HOLE
- Series：C20200
- Mfr：ITG Electronics, Inc.
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：16A
- DC Resistance (DCR) (Max)：6mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.500" L x 0.811" W (38.10mm x 20.60mm)
- Height (Max)：1.530" (38.86mm)
- Package / Case：Radial, Vertical - 4 Leads
- Inductance @ Frequency：1.2 mH @ 1 kHz
- Impedance @ Frequency：-
Download product information
Overview
The ITG Electronics C20200-15 is a through-hole common mode choke designed for power line filtering. It features an inductance of 1.2 mH measured at 1 kHz and supports a maximum DC current rating of 16 A. The component has a low DC resistance (DCR) of 6 mOhm, ensuring minimal voltage drop and power loss during operation. It is constructed with a single winding configuration to provide effective electromagnetic interference suppression across a wide frequency spectrum.
Feature Summary
- Single wire wound construction for reliable performance
- Excellent EMI suppression capability over a wide frequency spectrum
- High current capacity suitable for demanding power applications
Applications
- Power line filtering in audio equipment
- RF frequency range signal conditioning
- General purpose electromagnetic interference suppression
Procurement Notes
Verify the specific inductance tolerance and current rating requirements against your circuit design before ordering. Confirm that the through-hole package dimensions fit your PCB layout constraints. Ensure the operating temperature range meets your environmental specifications. Check for RoHS compliance status if required by your manufacturing standards. Validate supplier authenticity to guarantee component quality.
Selection Notes
Select this component when high current handling is required alongside effective common mode noise reduction. The low DC resistance makes it suitable for applications where power efficiency is critical. Consider the physical size and mounting style compatibility with your assembly process. Evaluate the inductance value relative to the target noise frequencies for optimal filtering performance.
Part Context
This part belongs to the C20200 series of common mode chokes from ITG Electronics. The series offers various inductance values and current ratings to suit different power line filtering needs. These components are characterized by their robust construction and consistent electrical performance across a wide temperature range.
Replacement Considerations
Direct substitutes may include other ITG C20200 series variants with similar inductance and current ratings. Verify pinout compatibility and mechanical dimensions before substitution. Cross-reference specifications with equivalent parts from other manufacturers only if they match all critical electrical parameters.
FAQ
What is the inductance value of the C20200-15?
The inductance is 1.2 mH measured at a frequency of 1 kHz.
What is the maximum DC current rating?
The maximum DC current rating is 16 A.
Does this component have a high dielectric strength?
Yes, the C20200 series typically features a dielectric strength of 1500 Vrms.
